Arden MPX-1-A Encircled Flux Tester

The MPX-1A Encircled Flux Meter is the top choice for industry leaders worldwide, known for its adherence to international standards and repeatable results, setting the industry gold standard. Precise encircled flux measurements are vital for evaluating multimode network solutions and ensuring optimal optical system performance.

Arden nPA-400 Fiber Refractive Index Profile Tester

The nPA-400 is a fast, easy and cost-effective way to obtain refractive index data for verifying standard and specialty fibers.

The clean, efficient graphical user interface allows users to fully characterize their fiber with minimal training or experience. nPA-400 provides accurate and repeatable refractive index data, providing valuable information about fiber design and manufacturing processes.

The nPA-400 Refractive Index Analyzer uses improved refractive near-field techniques to analyze the grayscale intensity distribution of an optical fiber in end view to determine its complete 2D refractive index distribution.

Arden VFI Fiber End-Face Inspection Interferometers

VFI is an interference inspection system designed to check the surface quality and flatness of cut or polished optical fibers. Users can view their fibers in a variety of different views in 2D and 3D, giving them a comprehensive view of their cutting or polishing process. The VFI interferometer has proven itself over and over again in research, production and QA, and the feedback we have received from users indicates that they value these features.

Arden MPX Encircled Flux Tester

The MPX modal tester is the instrument of choice for testing loop flux for leading companies around the world. Simply connect a light source and jumper to the MPX and it will measure the modal injection conditions in real time.

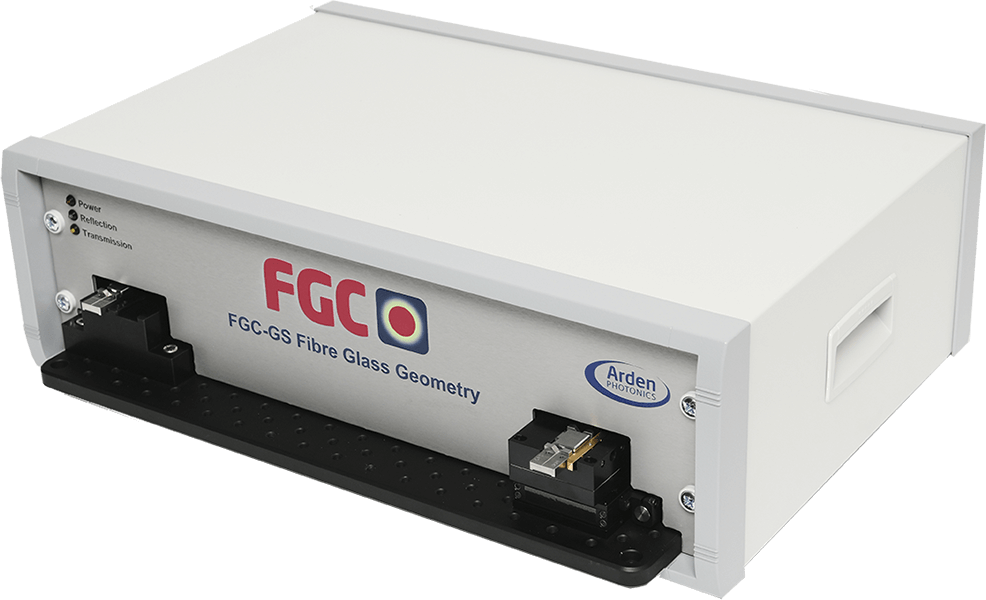

Arden FGC-G Optical fiber geometric parameter tester

The FGC-G Fiber Optic Geometry Test System provides high-speed automated measurement of fiber end-face geometry. It uses the Reference Test Method (RTM): video grayscale technique described in Appendix B of standard IEC-60793-1-20.

Dark field of view illumination

Arden FGC-P Optical fiber Coating Geometry Tester

The FGC-P Fiber Optic Coating Geometry System is a compact, reliable solution for measuring the geometric properties of fiber optic coatings from 100 μm to 260 μm in diameter. This user-friendly, fully automated system provides fast, straightforward measurement of fiber optic coating geometry parameters including: coating diameter, coating non-circularity, coating-cladding concentricity

Arden ModCon Mode Controller

The ModCon mode controller is a lightweight, compact module that will correct your LED or VCSEL light source to provide repeatable ring flux compliant injection conditions.

Simply plugging the MODCON into your light source will provide you with a stable and consistent output in accordance with IEC62180-4-1:2009 EF.

Arden CMC-1550 Modal Content Analyser

The CMC-1550 Modal Content Analyser is designed for measuring the modal characteristics of each individual mode in few-mode fibers and hollow core fibers which have complicated fiber structures.

Consisting of two different units - a launch unit and a receiver unit, it employs the spatially and spectrally resolved imaging (S2) technique to identify and characterise the fiber's individual mode, estimate its modedependent propagation loss, and assess its mode coupling effects.

The CMC-1550 obtains the Differential Group Delay (DGD) for each propagation mode and the relative intensity (or Multipath Interference (MPI)), compared to the most excited mode. It provides a comprehensive understanding of the individual mode characteristics and their interactions within the fiber, helps to reconstruct the propagation mode profiles and phases of the guided modes of the fiber under test.
