PRODUCTS

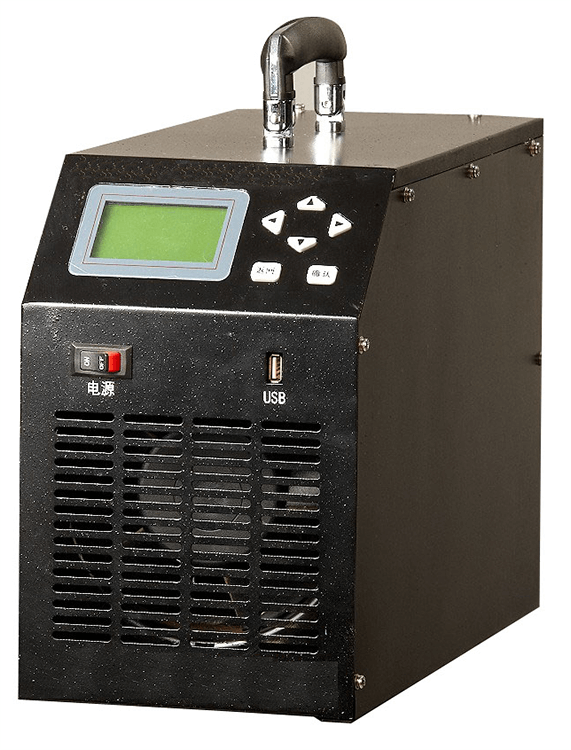

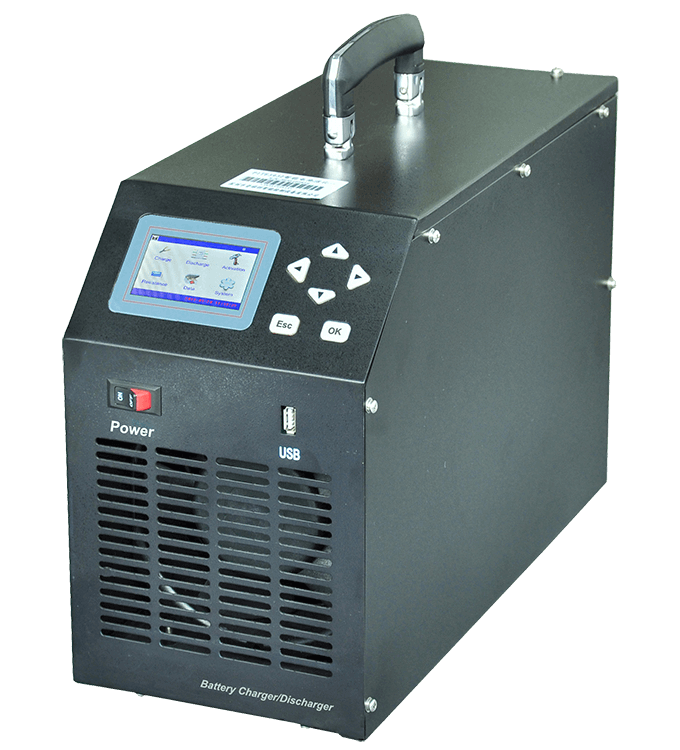

BPT-1932 intelligent battery activator is a portable product specially designed for daily maintenance of backward batteries, which has three independent ways of use: battery discharging, battery charging and battery activation. It can charge the battery with constant current or set multiple cycles to charge and discharge the battery with minimum capacity for several times, so as to activate the battery by stimulating the active material of the failed battery plates and enhance the capacity of the battery. At the same time, it is equipped with PC application software to upload the collected data to computer for various analysis.
Electrical Characteristics | BT-1932 Intelligent Battery Activator | Resolution | precision |
recharging current | 1~100A (2V mode), 1~30A (12V mode) | 1A | 1A |
Discharge current | 1~100A (2V mode), 1~30A (12V mode) | 1A | 1A |
total charging voltage | 1.7~2.4V (2V mode), 10.2~15V (12V mode) | 0.1V | 0.25% |
Total discharge voltage | 1.7~2.4V (2V mode), 10.2~15V (12V mode) | 0.1V | 0.25% |
Power supply | AC 220V±10% | ||
Display method | Chinese and English LCD | ||
Use environment | 5℃~50℃ 5%~90%RH Indoor | ||
volume | 400x176x272mm | ||
weight | 10Kg | ||
Communication Interface | USB |
BPT-1932 intelligent battery activation instrument is a portable product dedicated to the treatment of backward batteries in daily maintenance, which can be used to test the capacity of backward batteries and enhance the capacity of backward batteries for different actual conditions of backward batteries.
Charge and discharge, activation and curve indication functions
Data view and curve playback function
Data management function
System upgrade function features
Chinese and English menu operation, easy to learn and use. Small size, easy to move.
On-line activation, can activate single battery in floating charge state.
Comprehensive measurement and accurate display of battery voltage, current, charge (discharge) and activation results and waveforms.
