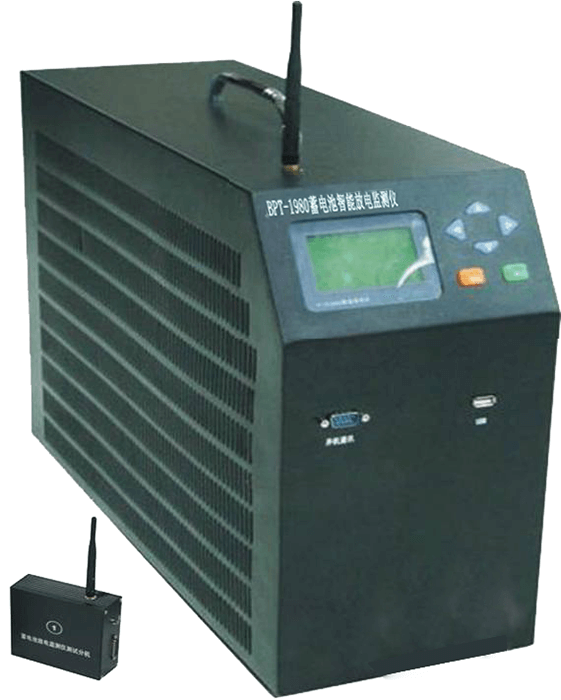

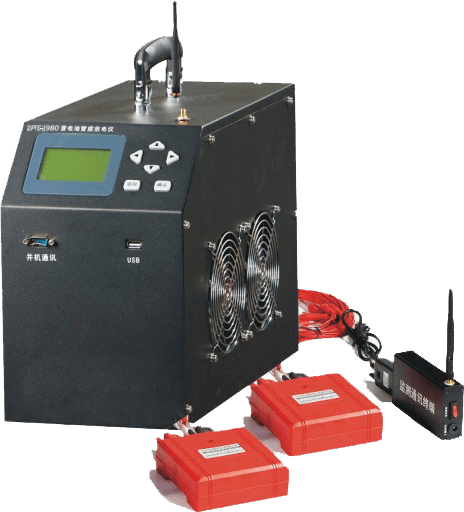

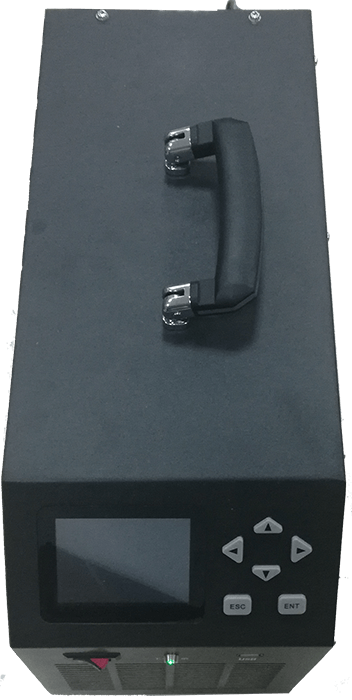

Products: Linpu BPT-1980 Intelligent Discharge Monitor

BPT-1980 intelligent discharge monitor is easy to carry and intelligent professional design makes the discharge test work simple and easy, which greatly reduces the labor intensity of professional maintenance personnel and also improves the scientific nature of discharge test. Power consumption part of the new PTC ceramic resistor as a discharge load, completely avoid the phenomenon of red heat, safe, reliable and pollution-free. The whole machine is controlled by microprocessor, LCD display, Chinese menu. The appearance design is novel, small volume, light weight, easy to move. After setting various discharge parameters, it will automatically complete the whole constant current discharge process, which is completely intelligent and makes the whole discharge process safer.

model

discharge

current

Battery

Voltage

Discharge termination voltage

Detect cell voltage

measurement accuracy

Communication Interface

heat dissipation

Way

Power supply

working environment

Weight and Dimensions

Screen size and storage capacity

48V150A

0-150A

DC48V

10-16V

adjustable

2V, 4V,

6V, 2V

Current measurement accuracy:  1%

Current control accuracy: 2%

Voltage test accuracy: 5%

data storageUSB

Parallel communication: RS232

forced air cooling

AC220V,

DC48V

Humidity: 5%-90%

Temperature: 0-50 degrees

9KG 415*180*310

128*64

LCD



2M bit

48V200A

0-200A

13KG

520*180*393

48V300A

0-300A

15KG

570*225*460

220V30A

0-30A

DC220V

176-275V

adjustable

AC220V,

DC220V

9KG

415*180*310

220V60A

0-60A

13KG

520*180*393

220V100A

0-100A

15KG

570*225*460

BPT-1980 intelligent discharge monitor is specially designed for battery pack for verification discharge test, capacity test, routine maintenance of battery pack, project acceptance and other DC power carrying capacity test.

Checking discharge test function

Quick measurement function

Online actual load discharge test battery pack capacity after power failure

Charging voltage monitoring function

Falling battery identification function (successive discharge function)

PC wireless monitoring function

Data management function

PTC ceramic resistor is used to avoid the red heat phenomenon and make the whole discharge process safer.

Chinese and English operation interface, easy to learn and use. Light weight, easy to carry.

Easy installation, debugging and maintenance of equipment.
