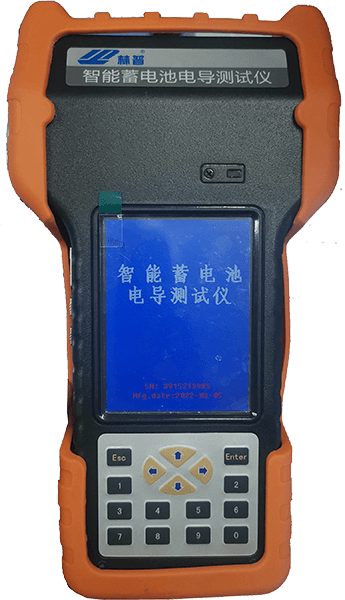

Products: Linpu BPT-1918 Intelligent Battery Conductivity Tester

Using the most advanced AC discharge detection method, it can accurately measure the voltage and conductance at both ends of the battery, and use it to judge the battery capacity and technical status of the battery.

Projects

BPT-1918 parameters

Measurement Range

Electrical conductivity: 10S-100000S

Voltage: 0.000v--150v

Minimum Measurement

Resolution

Conductance: 10S

Voltage: 1mV

Measurement accuracy

Conductance: ±2.0%rdg±6dgt

Voltage: ±0.2% rdg±6dgt

Displays

240×320 24bit 3.5 inch TFT LCD + touch screen

Size

190mm×100mm×30mm

Weight

0.5KG

Memory Capacity

16 Mbyte FLASH

Working power

Rechargeable lithium battery, full can work 5~6 hours

External power supply

AC100~240V/DC8.4V-1A power adapter/charger

Communication Interface

USB interface (can be plugged into a U disk)

Intelligent, digital, full Chinese operation menu, accurate measurement and easy operation.

Adopt LCD touch operation mode, beautiful appearance, small volume and light weight.

Under strong ripple interference, it can accurately test battery voltage and internal resistance online. No safety hazard.

BPT-1918 intelligent battery conductivity tester adopts the most advanced AC discharge test method, which can accurately measure the voltage and conductivity at both ends of the battery, and use it to judge the battery capacity and technical status of the battery. Customers can choose the battery conductivity test, voltage test and capacity estimation according to their own situation. It can be used as the basis for matching the conductance of new batteries; it can be used to test the conductance of batteries before and after discharging to identify the real backward batteries; it can measure the batteries in groups as well as single section.
