Supports 1310, 1550 wavelengths with dynamic range up to 45dB
Supports in-line test wavelengths of 1490, 1625, 1650nm with dynamic range of up to 40dB and up to 1:128 beam splitter penetration
Short enough blind zones (0.8m event blind, 4m attenuation blind) and up to 25600 sampling points to ensure accurate testing of the PTO30 over the entire fiber link

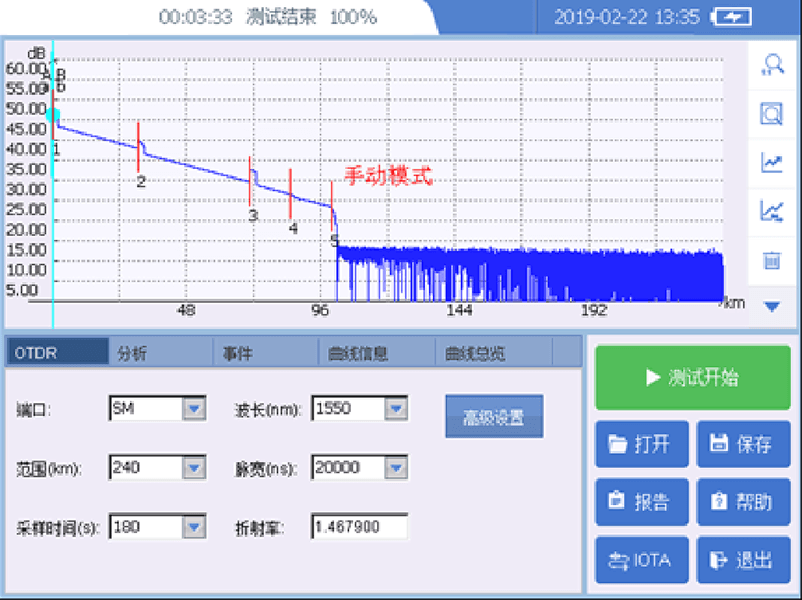

Fast test mode with automatic trace diagnostics, one-touch setup and event detection
Supports intelligent photo eye test function, VFL red light function, optical power meter and light source test function
Smart photo eye, 0.8m event blind zone, minimum 3cm sampling resolution and up to 45dB dynamic range combine perfectly

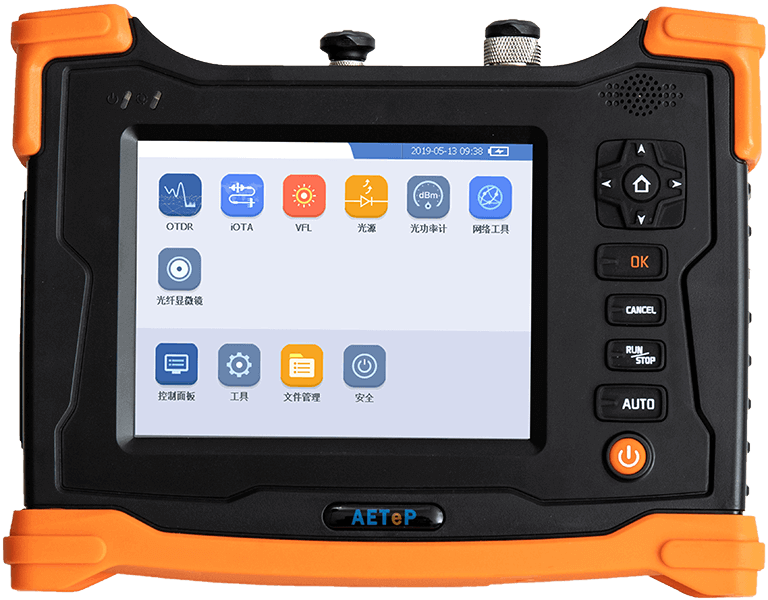

High-resolution 5.6-inch color high-brightness TFT touchscreen display allows easy control of the instrument in high brightness
USB interface for user USB stick and fiber-optic end-microscope connection
AETeP remote control PC software can be used to perform instrument software maintenance, manage instrument test configurations, process test results and generate test reports
Carrier backbone network, metro network, FTTH link opening and maintenance repair
Power system, railroad system, army optical network opening and maintenance
