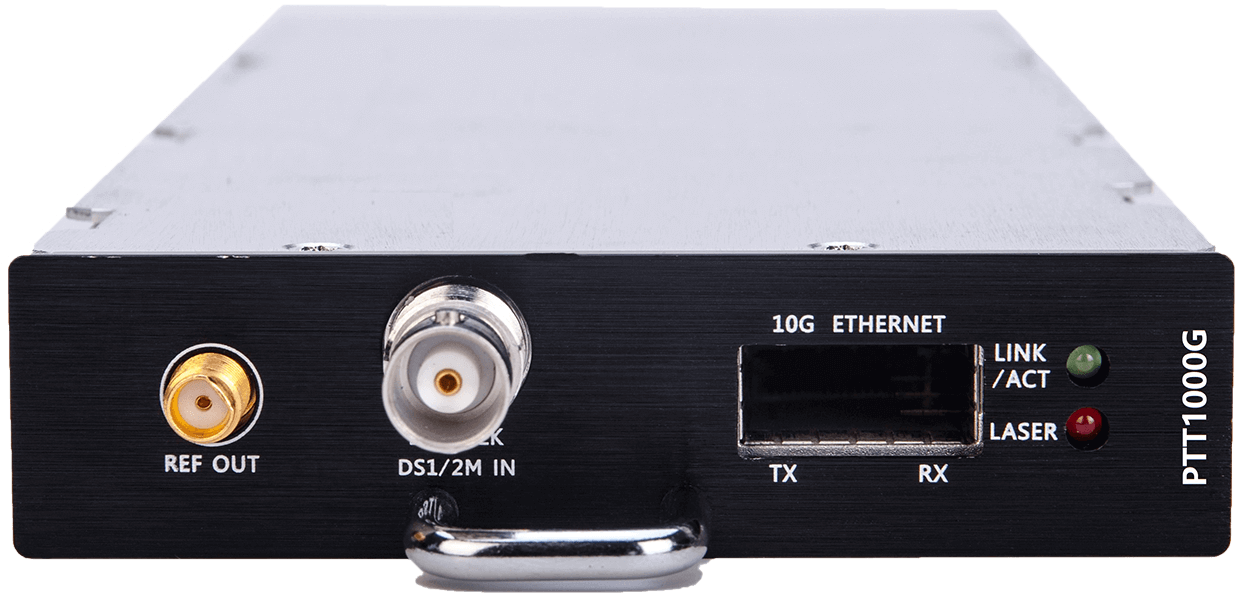

One 10G Base-X test interface, two 10/100/1000M Base-T, 100M Base-FX, 1000M Base-X test ports

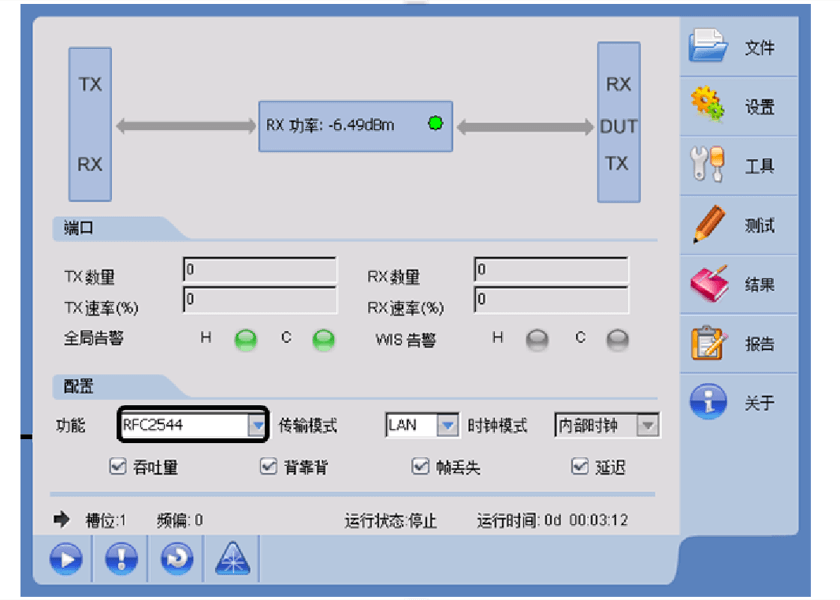

Throughput, back-to-back, latency and frame loss measurements according to RFC 2544 (bi-directional results)
Complete Y.1564 test suite (bi-directional results) Y.1564 provides comprehensive field testing for mobile backhaul and business services
Supports OAM testing capabilities based on ITU-T 802.3, ITU-T Y.1731 and ITU-T G.8113.1 standards
Supports inline service scanning based on destination/source MAC, destination/source IP, Layer 3 VLAN ID, Layer 3 MPLS Label
Provides a complete solution for 10 Gigabit Ethernet from installation and commissioning to operation and maintenance
10GbE supports up to 512 streams generation and analysis, providing throughput, latency, frame loss and packet jitter measurements for each stream
Supports packet jitter testing based on the RFC3393 standard to evaluate IP packet delay variations
Supports advanced PING testing for specified IP address pools
Gigabit interfaces support IEEE1588v2 PTP and Sync-E master-slave emulation testing
Installation and maintenance of Metro Ethernet and IP services
