Products: Arden CMC-1550 Modal Content Analyser

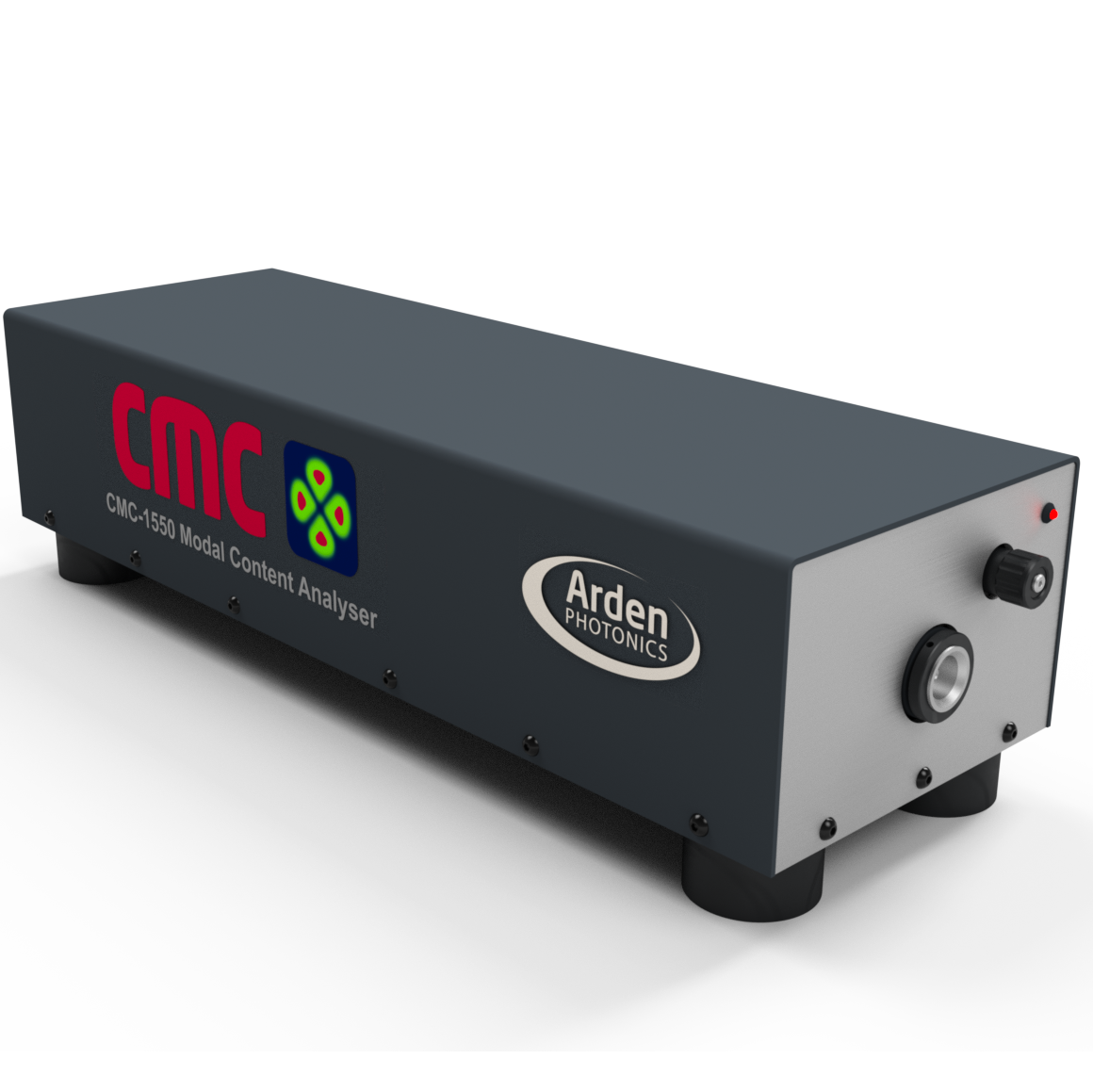

The CMC-1550 Modal Content Analyser is designed for measuring the modal characteristics of each individual mode in few-mode fibers and hollow core fibers which have complicated fiber structures.


Consisting of two different units - a launch unit and a receiver unit, it employs the spatially and spectrally resolved imaging (S2) technique to identify and characterise the fiber's individual mode, estimate its modedependent propagation loss, and assess its mode coupling effects.


The CMC-1550 obtains the Differential Group Delay (DGD) for each propagation mode and the relative intensity (or Multipath Interference (MPI)), compared to the most excited mode. It provides a comprehensive understanding of the individual mode characteristics and their interactions within the fiber, helps to reconstruct the propagation mode profiles and phases of the guided modes of the fiber under test.


Measure hollow core and few-mode fibers, up to 400 μm in diameter

Reconstruction of propagation mode profiles and phases

Calculate the relative intensity of high order modes compared to the most excited mode

Calculate the DGD of the propagation modes

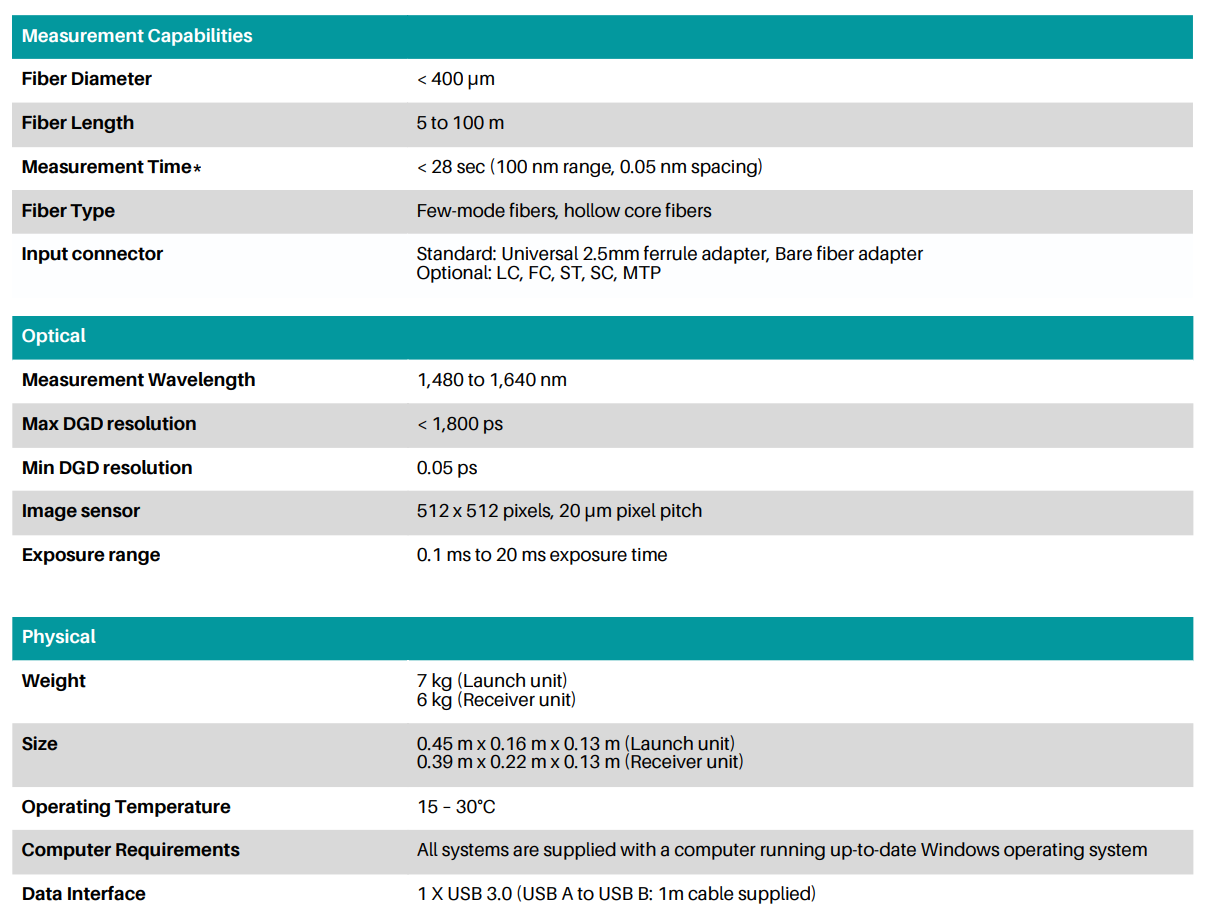

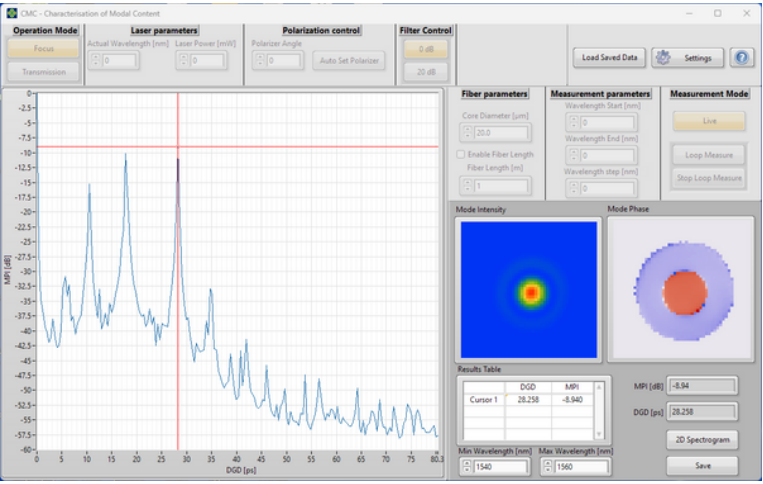

Loop measurement mode enables real time measurement

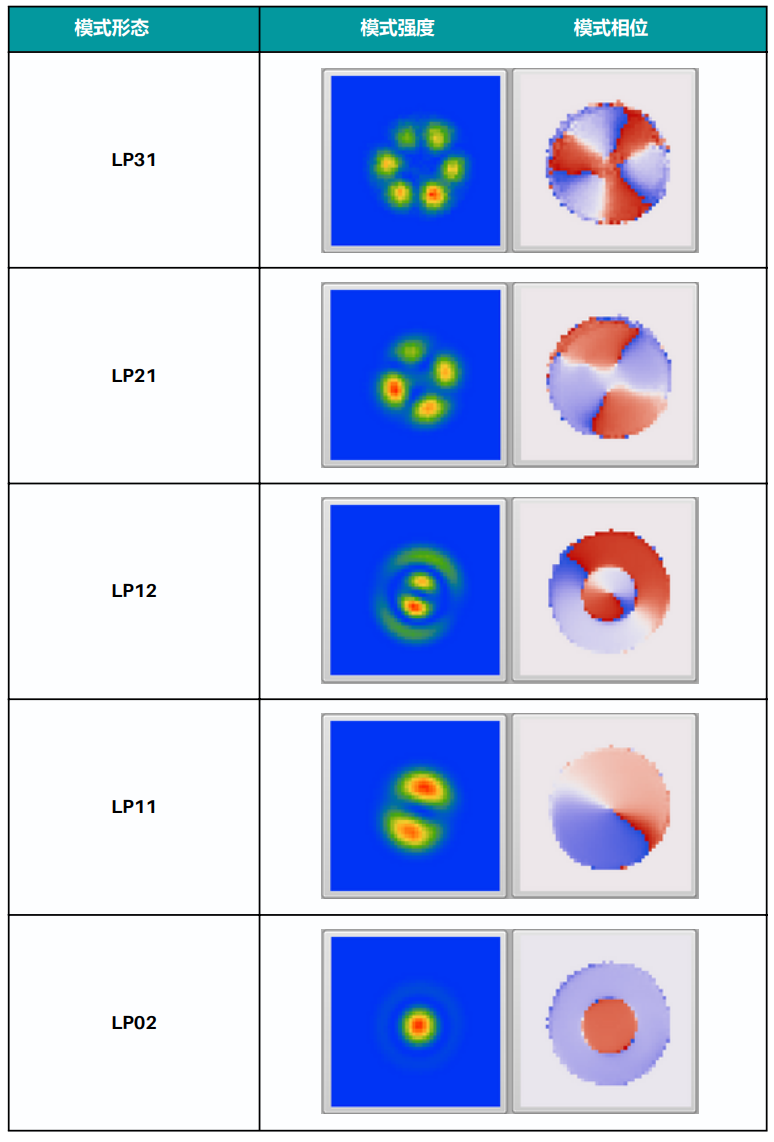

The two colors indicate different signs of the electric field values.
