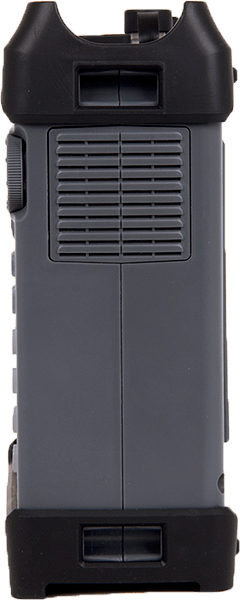

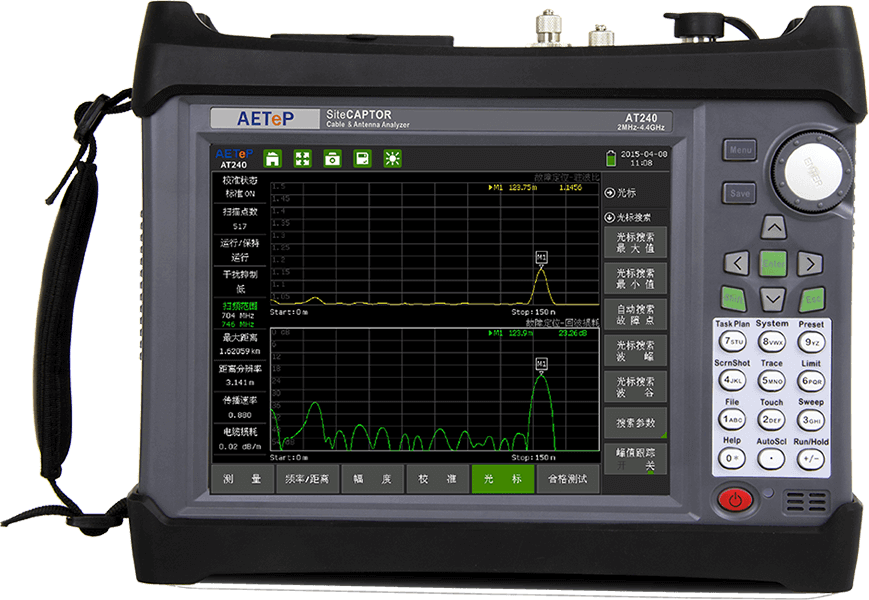

Products: AETeP AT Series Cable and Antenna Analyzer (AT240R/AT260R)

Most problems in mobile communication networks are problems in the base station infrastructure consisting of antenna systems, cables and connectors. AT series antenna feeder fault location can successfully find the location of these problems, improving the efficiency of base station installation and maintenance, and is an essential test tool for operation and maintenance departments, engineering and construction units, research, teaching and production.

Download
Product parameters Product Features Application Scenarios

1.Test frequency support range: 2MHz-4400MH/6000MHz

2.Frequency resolution: 1Hz

3.Output level: >10dB

4. Support 5 kinds of data points: 130, 259, 517, 1033, 2056

5. Interference rejection: +10 dBm (within ±10 kHz) +25 dBm (>1.0 MHz)

6. VSWR test range: 0-65

1. With VSWR, return loss, cable loss, fault location (return loss), fault location (VSWR), Smith chart

2. Can automatically PASS/FALL analysis

3. With PC software, test data can be analyzed and report output

4. Double battery slots, can last 8 hours

1. Base station RF unit, cable routine maintenance

2.Leakage cable and antenna VSWR acceptance test (refer to GB 50382-2016 "Quality Acceptance Specification for Urban Rail Transit Communication Engineering")

3.Leaky cable and antenna fault location
