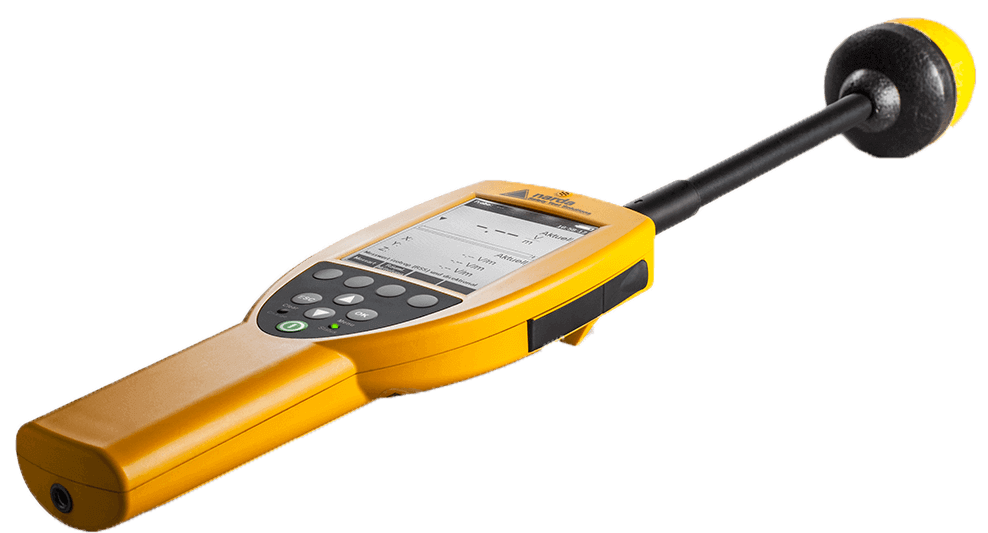

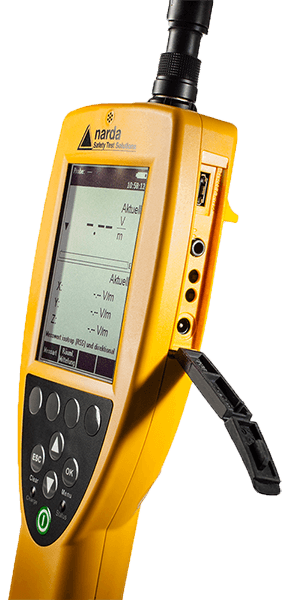

The NBM-550 accurately measures the field strength of electromagnetic radiation. It uses interchangeable probes to measure high frequencies covering industrial frequencies from a few hertz, long waves up to microwave radiation. It is equipped with different types of probes to measure electric and magnetic field strengths, and can also use common probes and other weighted types of probes based on human safety standards. Each probe has a calibration factor, which is automatically read out and calibrated by the host computer during the measurement.
1. Isotropic measurement, probe frequency range covers 0 Hz - 90 GHz
2. Intelligent automatic probe identification, plug-and-play, and field recording annotation function
3. 5000 measurement results can be stored
4. Condition recording: can save the measurement data results beyond the threshold
5. Spectrum analysis and weighted peak measurement probe, 1 Hz - 400 kHz low frequency probe
6. Magnetic field probe, 0 Hz (DC) - 1 kHz
7. Supports up to 30 minutes of time averaging and 24 sites of spatial averaging
1. Rugged design, one-hand operation, monochrome LCD screen, suitable for field measurement
2. Support weighted measurement probe
3. Meet the measurement requirements of the standard
4. Provide the widest frequency band measurement probes on the market
5. Built-in FFT analysis function of the probe can be low frequency signal spectrum measurement
6. Automatic zeroing
1. Measurement of electromagnetic fields restricted by public safety regulations, such as EMF guidelines 2013/35/EU
2. Measurement and monitoring of field strength around broadcasting, radar and other equipment
3. Measurement of field strength of cellular phone base stations and satellite communication systems for compliance with safety standard limits
4.Field strength measurement in industry, such as welding equipment, high frequency heating, tempering and drying equipment
5. Measurement of field strength of equipment for heat transmission therapy and other medical equipment that can generate high-frequency radiation to protect health care workers from human radiation
6.Measure the field strength of electromagnetic compatibility transverse electromagnetic wave room (TEM cell) and microwave darkroom
7.Spectrum measurement of low frequency field strength from industrial equipment or overhead cables
8.Measurement of static magnetic fields (e.g. MRT) of industrial and medical equipment
