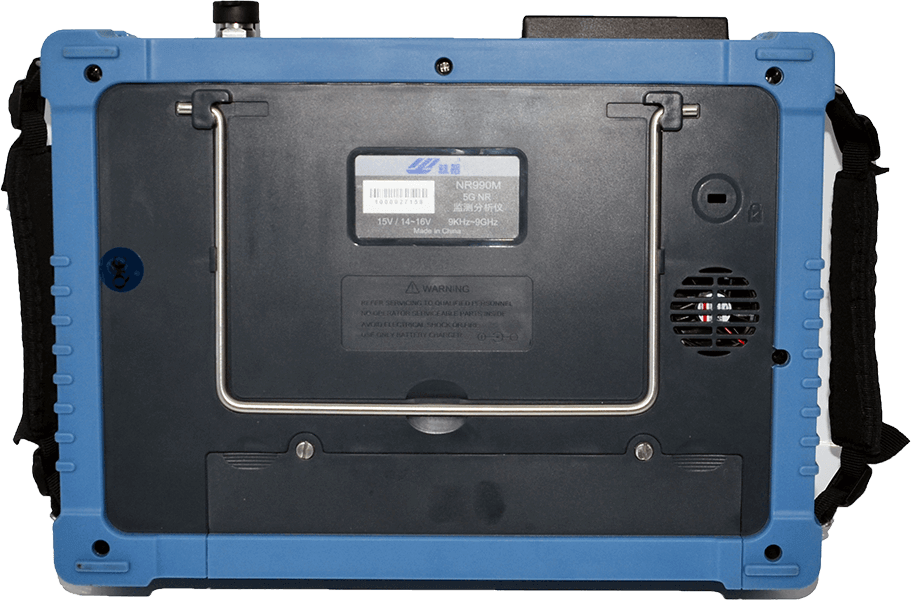

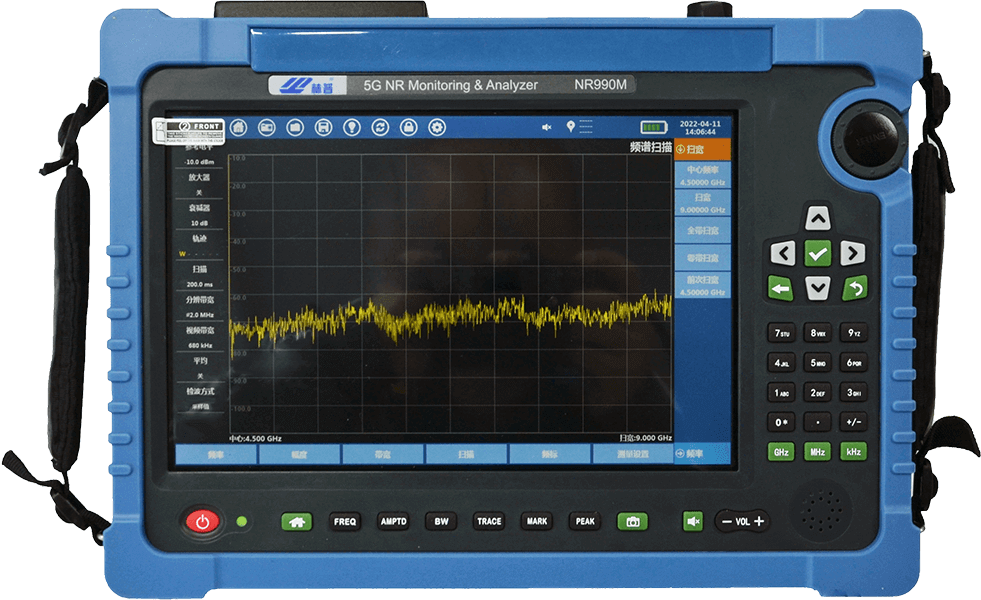

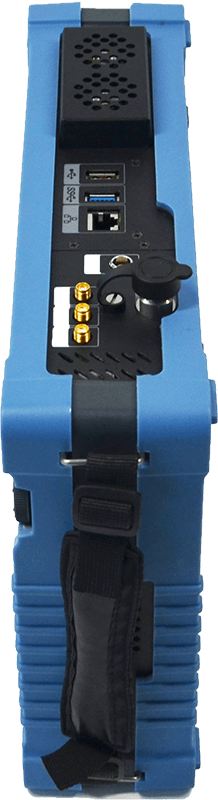

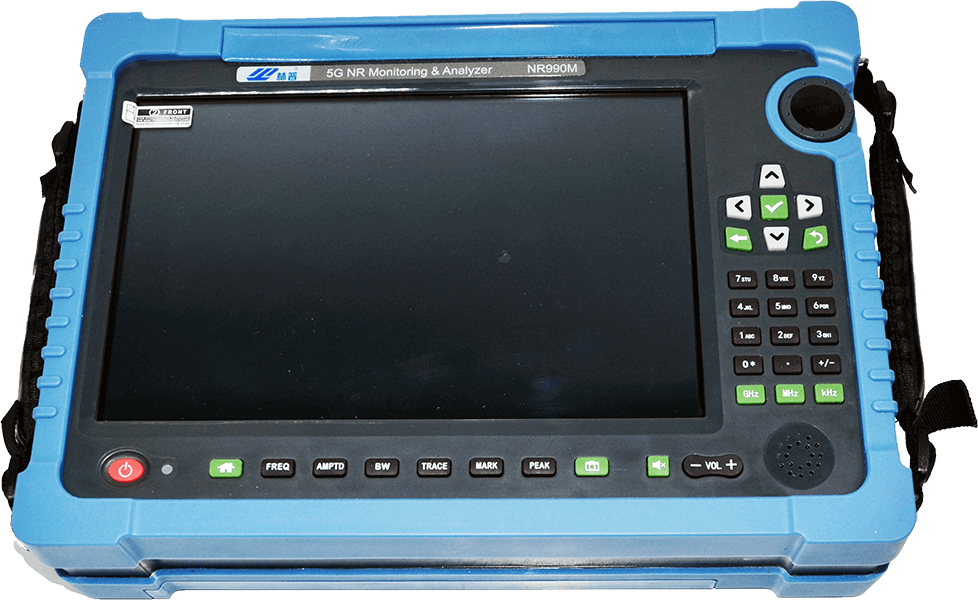

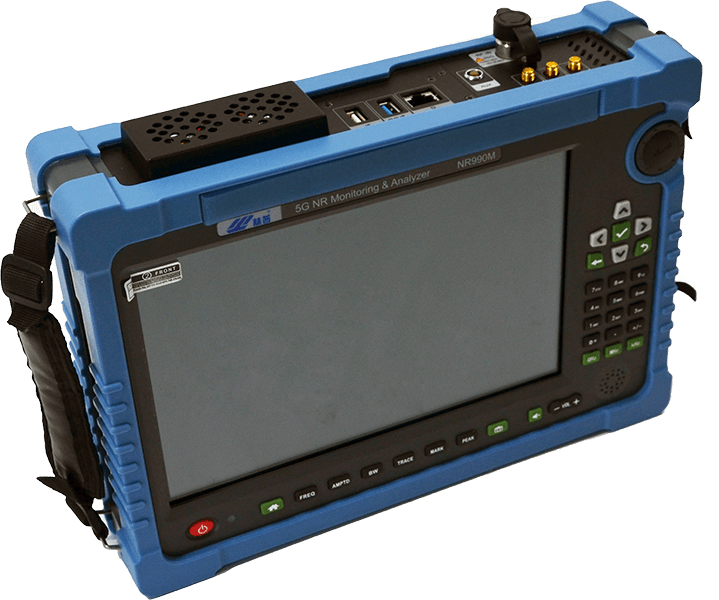

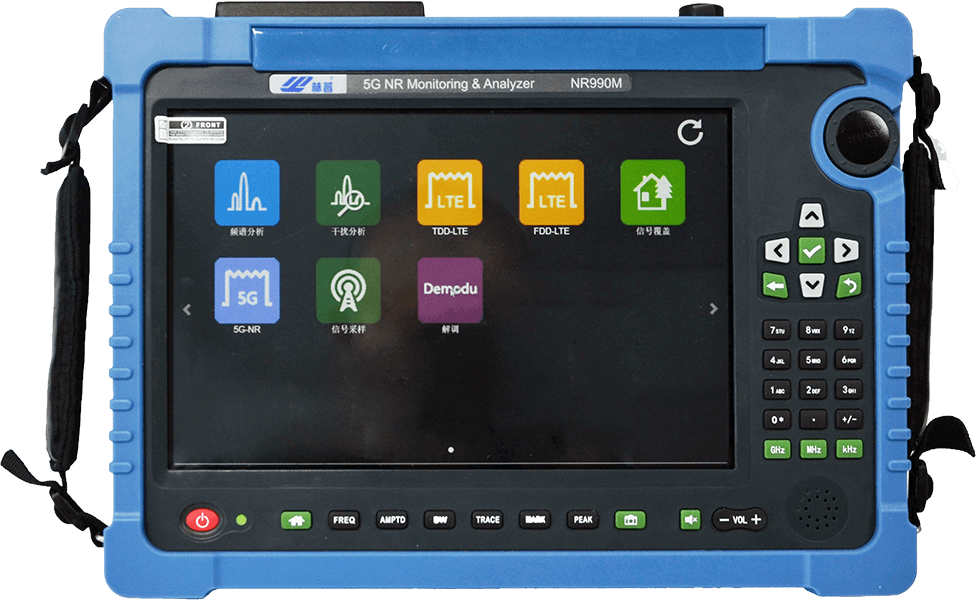

Products: Linpu NR990M 5G NR monitoring analyzer

NR990M 5G NR monitoring analyzer is a test tool applied to the field for radio monitoring and management of 5G NR communication system provided by Linp. It has the coverage test of 5G NR network, and can make an overview of the network coverage of 5G network of three major operators; it is also a "sharp knife" for 5G interference finding, and solves the current interference investigation work of radio management department facing TDD system.

Download
Product parameters Product Features Application Scenarios

1.Support 5G-NR (100MHz bandwidth), 4G-LTE (20MHz bandwidth) system demodulation analysis

2.Scan speed up to 30GHz/s

3.Frequency support 9kHz-9GHz

4. Support 4G/5G demodulation, and can perform beam analysis for 5G

5.10.1 inch capacitive touch screen, support multiple display styles

1. Gating technology: with time domain, frequency domain stripping, IF support up to 100M bandwidth

2. Symbol-level stripping display: can display any symbol (35.714us) frequency domain information (spectrogram)

1.4G/5G interference clearance

2.4G/5G indoor and outdoor road test coverage

3.Competition comparison analysis test

4.Base station stand-alone performance index test
