Receiver frequency range 8KHz to 8GHz
Scan speeds up to 50GHz/s
10 sub-octave preselector groups to ensure high dynamic
Second order cut-off point 65dBm (low distortion)
Third order cut-off point 35dBm (low distortion)
40MHz real-time bandwidth: FFT overlap is not less than 75%; The number of FFT samples is 16,384
Two DDC parallel processing
100% POI minimum capture time: >3.125 µs with full amplitude accuracy; >2 ns, without regard to amplitude accuracy

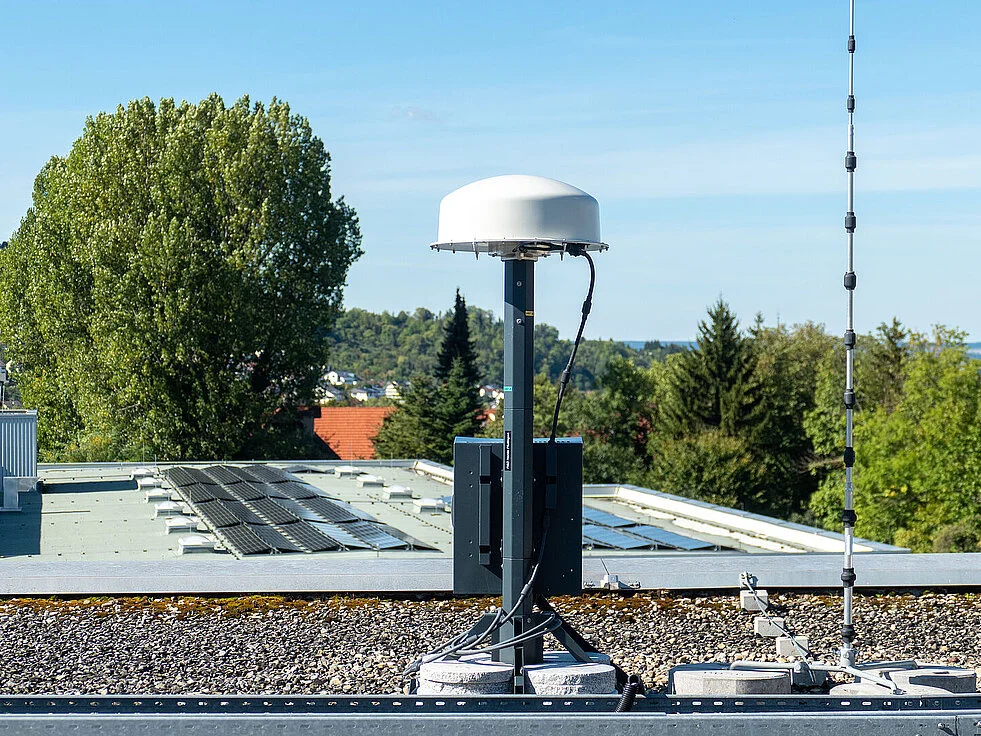

Integrated design of monitoring direction finding antenna, monitoring frequency 100kHz-8GHz, direction finding frequency 10MHz-8GHz
Direction finding accuracy: <2° (30MHz-3000MHz) <1.5° (3-8GHz)
Direction finding sensitivity: <15dBμV/m(30MHz-8GHz)
Direction finding time: 2ms
High dynamic, high sensitivity
Efficient human-computer interaction
Multifunction view
Fully automatic direction finding system
Noise power density measurement
Channel power measurement
Bandwidth measurement
Field strength measurement
CISPR detector
Modulation detector
Analog demodulation and recording
Audio whistle
Automatic direction finding
Automatic positioning (" heat map ")
TDOA location
Vehicle monitoring direction finding location
The monitoring station can be moved
Portable monitoring direction finding and other work scenarios
