The new TSL-570 is a high performance tunable laser with wide tuning range, high output power and high signal-to-noise ratio, built on Santec's more than 30 years of experience in tunable laser manufacturing. The new optical cavity design provides precise speed control up to 200nm/s and sub-pico-meter resolution and accuracy. The tunable laser can be used in a wide range of applications in optoelectronics, such as characterization of optical devices, testing of photonic integrated circuits, quantum photonics, spectroscopy and sensors.
The new TSL-570 is a high performance tunable laser with wide tuning range, high output power and high signal-to-noise ratio, built on Santec's more than 30 years of experience in tunable laser manufacturing. The new optical cavity design provides precise speed control up to 200nm/s and sub-pico-meter resolution and accuracy. Tunable lasers can be used in a wide range of applications in optoelectronics, such as characterization of optical devices, photonic integrated circuit testing, quantum photonics, spectroscopy and sensors.

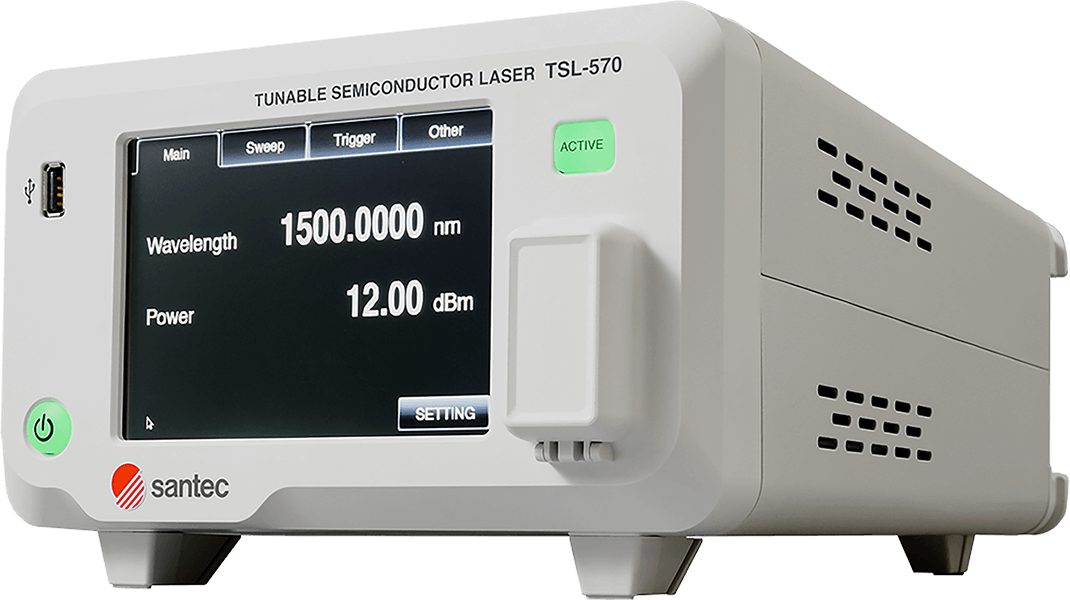

Santec's TSL-570 is a high-specification, full-featured laser for all applications. It has an easy-to-use touch screen and Ethernet, GPIB and USB interfaces for remote control. The Wake on LAN (WoL) feature makes remote installation easy. Available in wavelengths from 1240 to 1680 nm and with output power up to 20 mW, the TSL-570 features a new sealed laser cavity that ensures no mode hopping across the full wavelength range and provides stable output at every wavelength. It has 0.1pm resolution, sub-pico-meter accuracy and a market-leading 90dB/0.1nm ultra-low level signal-to-noise ratio.

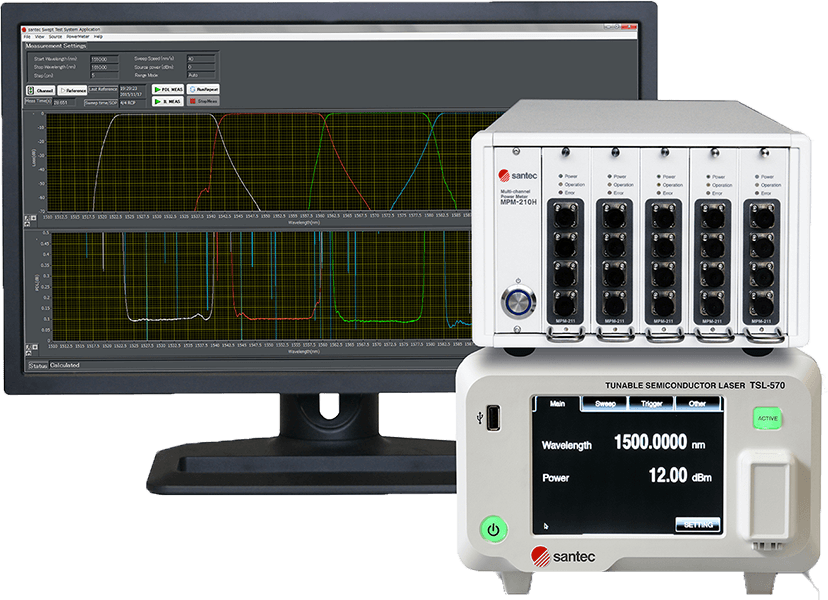

The TSL-570 works seamlessly with Santec's optical power meters, optical switches, and polarization controllers to provide a complete solution for WDL and PDL testing.
High speed: Up to 200nm/s scanning speed
Broadband tunable range: 1240-1680nm selectable
Wavelength resolution: 0.1pm
High signal-to-noise ratio: 90dB/0.1nm
Fine tuning range: 10GHz
Optical Device Characterization
Optical Fiber Transmission Testing
Photonic Material Characterization
Spectroscopy
Interferometry
