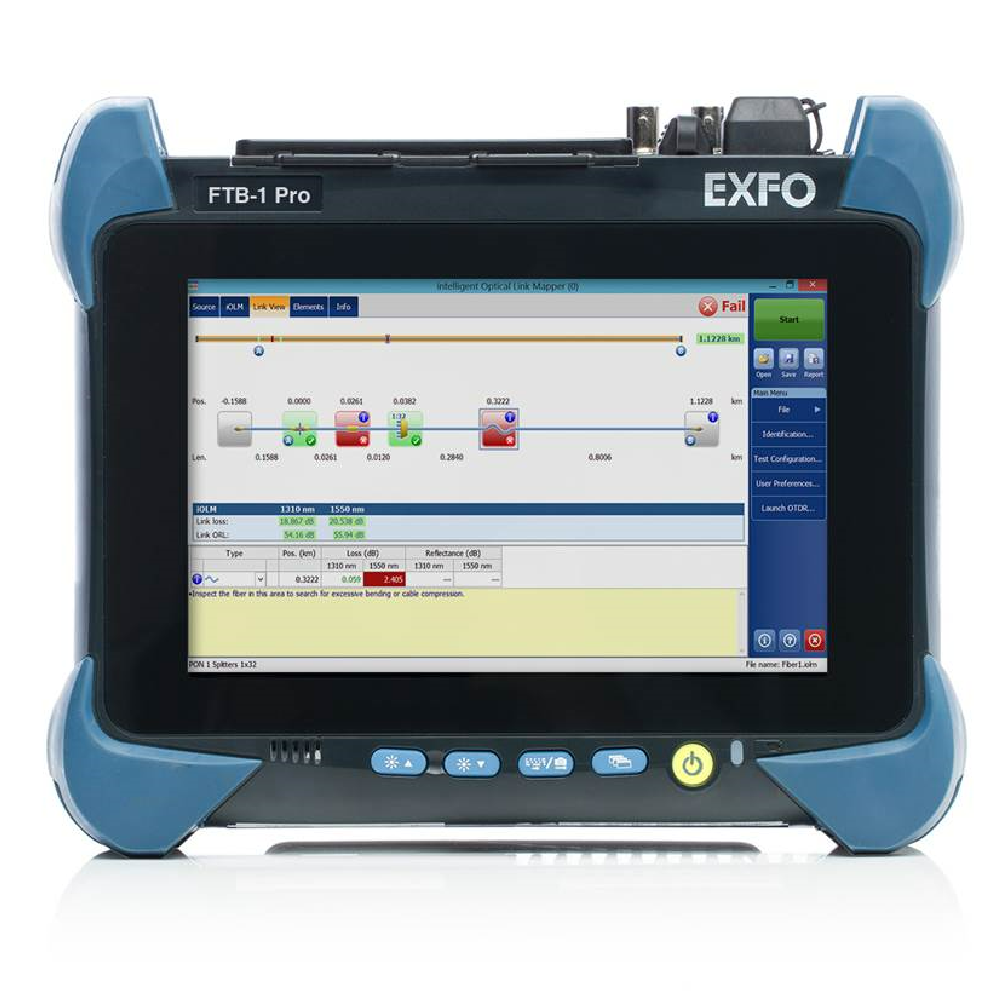

Products: EXFO FTBx-88260 100G Network Tester

1G to 100G multi-service test modules, including: Ethernet, OTN, SONET/SDH, FC, CPRI/OBSAI, eCPRI

Provides customizable 1G-100G (including 25G/50G) test capabilities to meet multiple types of transceiver test requirements through EXFO's Open Transceiver System (OTS)

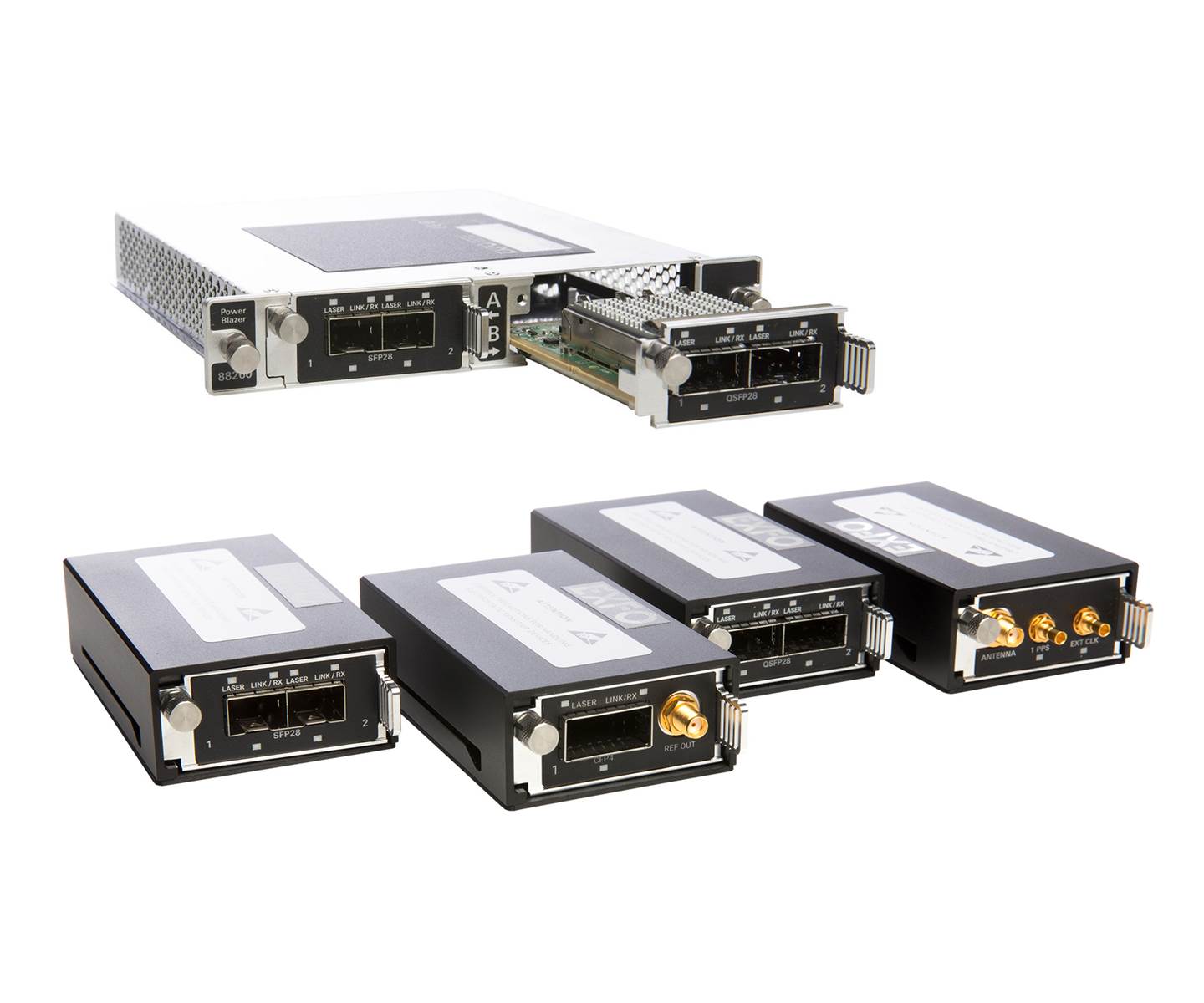

Dual SFP28 Interface Module

10G/25G/FC32x data rates

Ethernet dual port testing (EBERT, RFC2544, ESAM, TGEN), OTN, SONET/SDH, FC testing

Dual QSFP28 interface modules

40G/100G data rates

Framed Ethernet dual-port testing (EBERT, RFC2544, ESAM, TGEN), OTN testing

Single CFP4 interface module

Ethernet dual-port testing (EBERT, RFC2544, ESAM, TGEN), OTN testing

Ideal solution for latency and clock testing

Features EXFO's OTS (Open Transceiver System): An innovative, revolutionary design that enables any transceiver (existing or future) to be installed into EXFO's test solution, the OTS supports multiple interfaces: dual SFP28 interfaces, dual QSFP28 interfaces and single CFP4 interfaces

Provides dual-port Ethernet testing capabilities up to 50G, including a complete test suite

Provides iOptics test applications for AOC cables, QSFP28, SFP28, QSFP+, CFP4, SFP+, SFP and bi-directional SFP modules

EXFO's transport and datacom test equipment and modules cover all typical Ethernet standards test applications, including BERT, RFC 2544, EtherSAM (ITU-T Y.1564) and RFC 6349 L4 TCP testing. iSam test methods are also available, combining all advanced standards testing into EXFO's unique, user-friendly service turn-up and troubleshooting tools.

Deploy, validate and troubleshoot 5G and 4G networks with iORF: Intelligent applications that analyze the RF spectrum through CPRI

Optical transceiver module validation

1G to 100G service deployment and QoS assessment (SLA validation)

Commercial Ethernet services, metro/core network validation

Data Center Interconnection Validation
