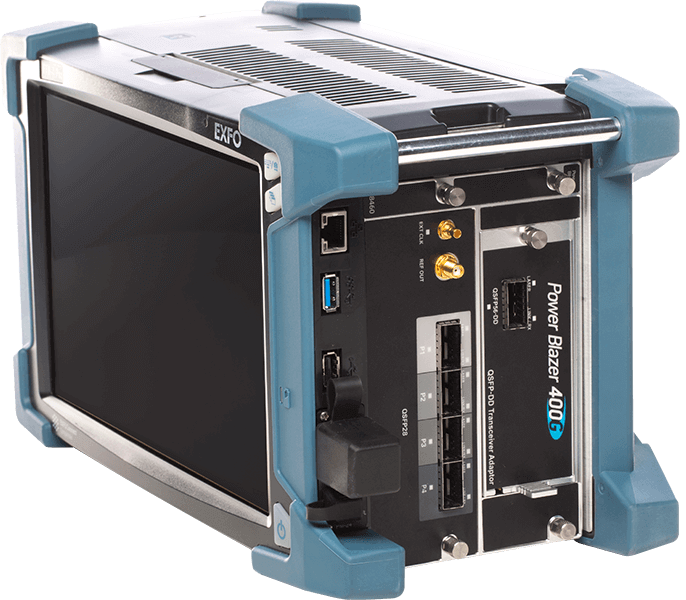

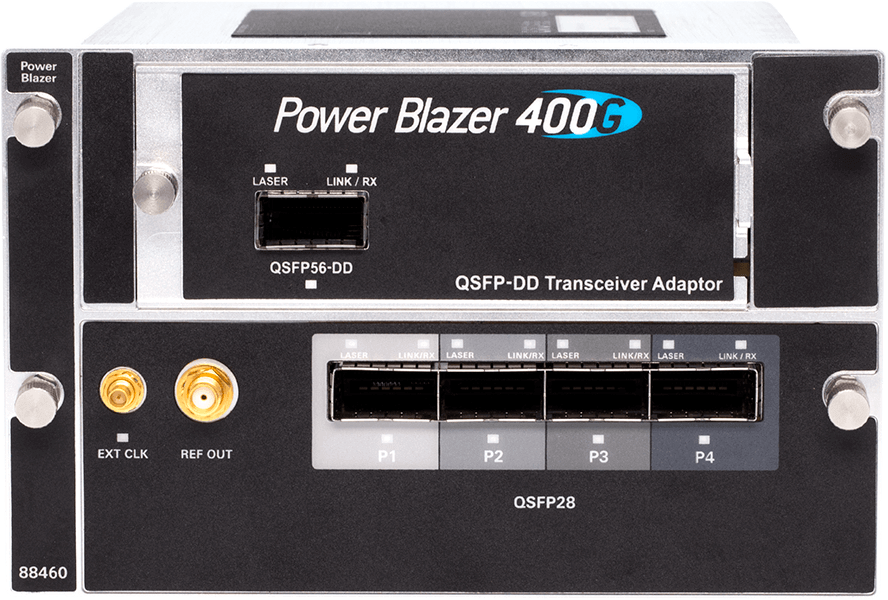

The FTBx-88460 400G module provides advanced Ethernet testing capabilities, including forward error correction monitoring and verification.
Flex Ethernet (FlexE) testing is also supported for one or more tied 100GBASE-R PHYs, the latter supporting multiple and mixed rates of 5, 10, 25, 40, 50, 100 or up to 400 Gbit/s Ethernet MAC clients.
The FTBx-88460 also supports testing of transceiver modules, including: QSFP-DD (TA4), CFP8 (TA4), and QSFP28.
Provides 400G/200G/100G Ethernet testing capabilities based on IEEE 802.3bs and IEEE 802.3ba standards
Flexible Ethernet (FlexE) 1.1 and 2.0 testing capability with 4 QSFP28 ports and QSFP-DD ports for testing both low-speed and high-speed Ethernet clients
Flexible solution that supports current CFP8, QSFP-DD and OSFP interfaces without the use of adapters, as well as next-generation interfaces (e.g., coherent, CFP2-DCO, ZR)
OTUCn/FlexO BER testing capabilities to support mapping of 100G/200G/300G and 400G signals to ODUflex via 100G/200G and 400G interfaces
EXFO's Open Optical Module System (OTS): features an innovative, revolutionary design to verify QSFP-DD, OSFP and CFP8 interfaces
Provides a variety of test tools for 400G testing: KP4 FEC evaluation, virtual eye diagram turn-on histogram, PAM4 signal histogram available: visualize the PAM4 signal eye diagram and PAM4 signal levels for each channel
Supports coherent ZR and ZR+ optical modules
Use iOptics, an intelligent pluggable optical module test application, to quickly verify optical modules and check their integrity
Provides comprehensive test applications for 1G to 400G service turn-up (EtherSAM Y.1564, RFC 2544, BERT) and troubleshooting
Validation of 200G/400G network elements in carrier labs
Optical transceiver module validation
1G to 400G service deployment and QoS evaluation (SLA validation)
Commercial Ethernet services, metro/core network validation
Data center interconnection validation
