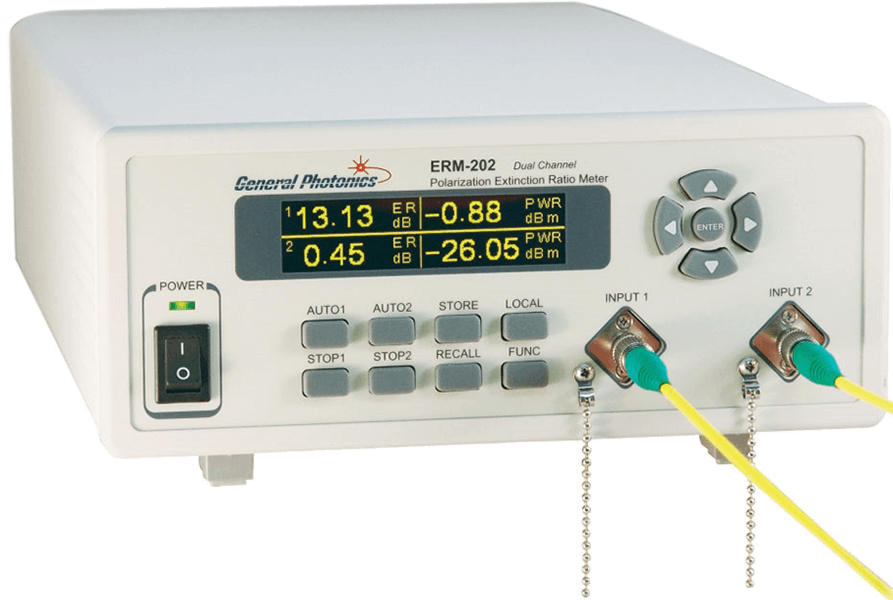

The single-channel version can also be upgraded to a dual-channel version. Each channel is feedback controlled based on the PER's analog electrical output and automatically aligns the device's deflection-preserving fiber. the PER has a dynamic range of 50dB and an angular resolution of 0.06°, which is 10-20dB higher than the extinction ratio testers commonly used in the market today. better than similar competitors. The high brightness OLED screen allows the user to see the information on the display at a large field of view and at a long distance. It has four measurement speeds, high speed for field alignment and low speed for high precision measurement. It can automatically measure PER, polarization angle, power ratio and power and display them on the OLED screen. If you need to compare the measurement data, you can store and recall the measurement data by the button under the front panel. ERM-202 provides quality assurance for the manufacture of polarization-preserving fiber connectors, depolarizers, polarization-preserving fiber fusion, and polarization-preserving fiber rings in polarization-preserving fiber modulators, optical waveguides, laser diodes, PMCs, PBSs, and fiber gyros.
Two measurement channels
Simultaneous measurement of PER and power ratio
PER range >50 dB
High brightness OLED screen
High angular resolution
Storage and recall function
IOC PER and Coupling Ratio Test
PMC and PBS, PER and coupling ratio testing
Laser diode polarization fiber end measurement
Polarized fiber optic patch cord production
Bias-insulating fiber fusion splicing quality control
Bias-insulating fiber coils and fiber gyro quality inspection, monitoring and measurement
