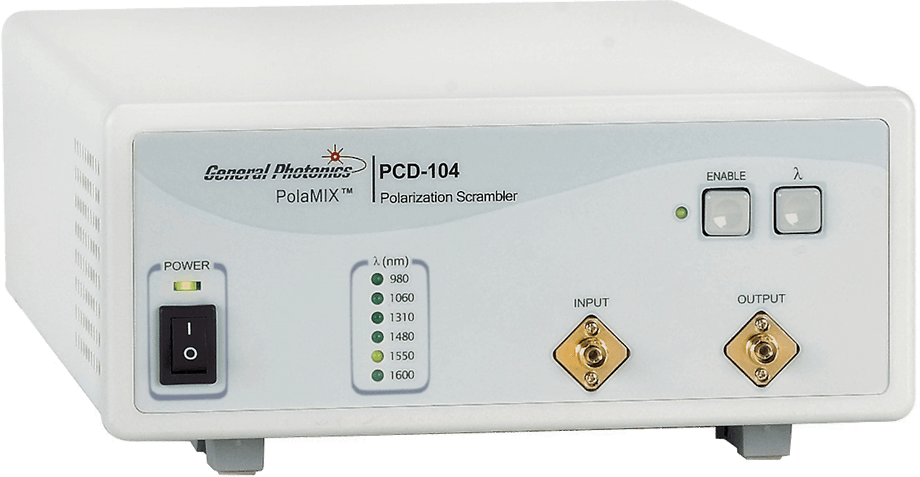

Products: General Photonics PCD-104 Polarization Scrambler

The PCD-104 Scrambler uses all-fiber technology to effectively disrupt the polarization state. the PCD-104 Scrambler achieves depolarization for a variety of important applications. Scrambling the input light eliminates measurement inaccuracies due to the polarization sensitivity of the instrument and system performance degradation due to PDG during testing. The PCD-104 offers superior performance with *low insertion loss, return inversion, and residual phase and amplitude modulation.

Download
Main features Main Applications Technical parameters

Low insertion loss and back-inversion

Low residual phase and amplitude modulation

Remote operation wavelength control

Built-in RS-232, GPIB and Ethernet communication interfaces

PDG Cancellation

Polarization cancellation

Facilitate PMD simulation

Ensure polarization-related loss PDL testing, measurement

Performance Parameters

Indicators

Central wavelength range

980、1060、1310、1480、1550、1600nm

Operating wavelength range

>100nm

Output DOP

<5%

Average PMD

<0.05ps

PDL

<0.05dB

Residual strength modulation

<+/-0.01dB

Residual phase modulation

<0.1π

Disturbance bias frequency

Factory set 4 fixed frequencies distributed between DC and >700kHz

Maximum injected power

1000mW
