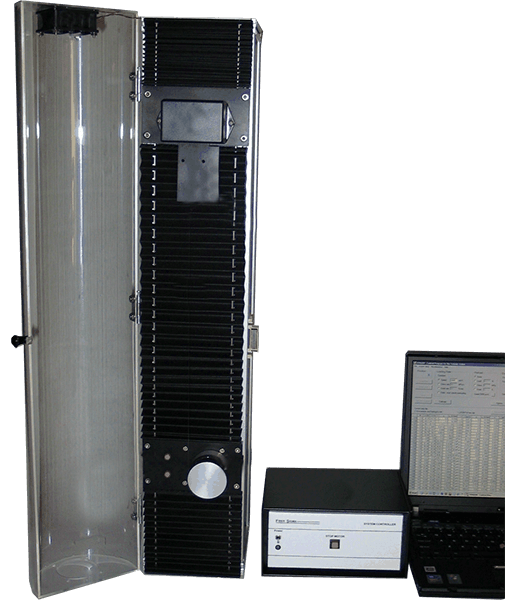

The axial tension test method is based on measuring the fiber pull-off force using two spindles or a fixed spindle and a peel force fixture to measure the fiber coating peel force. A computer-controlled stepper motor drives the spindles at a set constant rate (settable). When the fiber pull off/coating layer is peeled off, the stepper motor is stopped by a sensor and then the computer software calculates the fiber pull off force and coating layer peeling force.
All sizes available for 125μm (other sizes available as options) diameter quartz fiber
Loading rate 500μm/s, 8333.3μm/s , 500.00mm/min
Force measurement range 0.00N~150.00N
Force measurement accuracy 0.01N
Test procedure and results strictly follow the "National Standard of the People's Republic of China GB/T 15972.33-2008".
*100mm diameter fiber optic drive wheel can be upgraded through customization.
*The effective test length of 1M test body can be upgraded through customization.
*10M horizontal test body can be upgraded through customization.
Fiber Optic Manufacturing
Laboratories
Research Institutes
