3 different views
Flat and oblique cuts
Inspection and edge modes
Automatic or manual end angle measurement
2D or 3D measurement modes
3D end height map
2D measurement - real time; 3D measurement in 7 seconds
Height data can be saved as csv files
Data output as Excel or HTML report
Precision Cutting Knife Manufacturing
Cutting Knife Maintenance
Laser Manufacturing
Medical device manufacturing
Fiber Optic R&D
Specialty fiber optic manufacturing
Cutting knife development and testing
LDF cutting knife manufacturing/maintenance
Multi-core fiber optic manufacturing

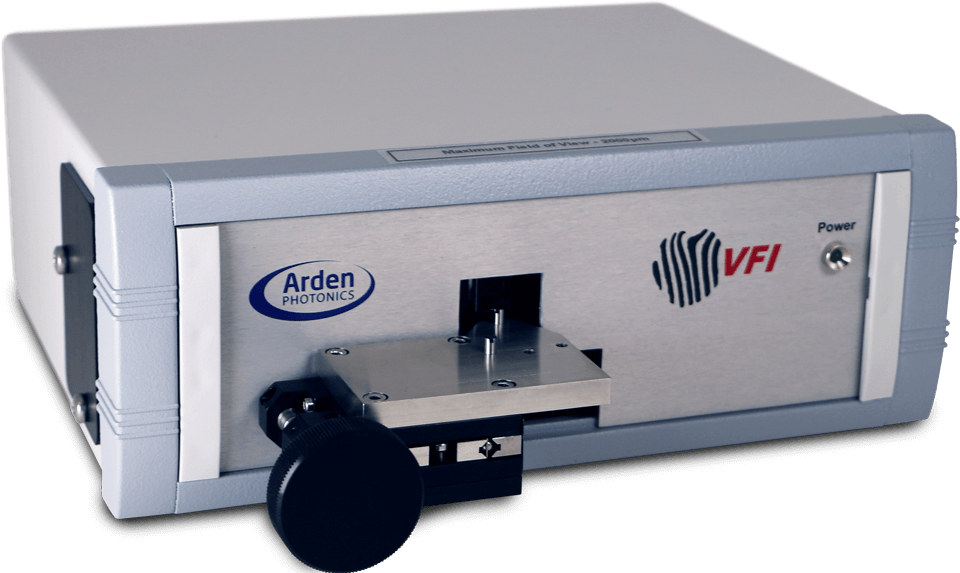

Optical | VFI-200 |
Field of View | 200 µm maximum withx1.5, x2, x3 and x6 digital zoom |
Image sensor | 1/1.8 inch CMOS array, 12-bit, 6.4 MP |
Camera sensor size | 3088 x 2076 px, 2.4 µm square pixels |
LED wavelength | 525 nm |
Measurement Capabilities | |
Maximum measurable cleave angle (without using angled fiber holder)* | 2D mode: 8°
3D mode: 4° |
Measurement time | 2D mode: real-time
3D mode: < 7 s |
Image Quality | Fully resolves USAF Target to Level 7 minimum |
Height Resolution | 0.01 µm |
Physical | |
Dimensions | 240(W) x 240(D) x 90(H) mm |
Weight | 3 kg |
Connection to computer | USB 3.0 (USB Type B to USB A; 1 m cable supplied) |
Power supply | Via USB |
Operating systems support | Windows 7/8/10 64bit |
Computer requirements | 4 GB RAM; USB 3.0 port; 64bit |
Operating temperature | 10 – 30°C |
* Maximum angle is stated for a fiber with 125 µm cladding diameter. Larger cleave angle can be measured using an angled fiber holder.
Optical | VFI-1200 |
Field of View | 1200 µm maximum with x1.5, x2, x3 and x6 digital zoom |
Image sensor | 1/1.8 inch CMOS array, 12-bit, 6.4 MP |
Camera sensor size | 3088 x 2076 px, 2.4 µm square pixels |
LED wavelength | 525 nm |
Measurement Capabilities | |
Maximum measurable cleave angle (without using angled fiber holder)* | 2D mode: 8°
3D mode: 4° |
Measurement time | 2D mode: real-time
3D mode: < 7 s |
Image Quality | Fully resolves USAF Target to Level 7 minimum |
Height Resolution | 0.01 µm |
Physical | |
Dimensions | 240(W) x 240(D) x 90(H) mm |
Weight | 3 kg |
Connection to computer | USB 3.0 (USB Type B to USB A; 1 m cable supplied) |
Power supply | Via USB |
Operating systems support | Windows 7/8/10 64bit |
Computer requirements | 4 GB RAM; USB 3.0 port; 64bit |
Operating temperature | 10 – 30°C |
* Maximum angle is stated for a fiber with 125 µm cladding diameter. Larger cleave angle can be measured using an angled fiber holder.
Optical | VFI-2000 |
Field of View | 2000 µm maximum with x1.5, x2, x3 and x6 digital zoom |
Image sensor | 1/1.8 inch CMOS array, 12-bit, 6.4 MP |
Camera sensor size | 3088 x 2076 px, 2.4 µm square pixels |
LED wavelength | 525 nm |
Measurement Capabilities | |
Maximum measurable cleave angle (without using angled fiber holder)* | 2D mode: 8°
3D mode: 4° |
Measurement time | 2D mode: real-time
3D mode: < 7 s |
Image Quality | Fully resolves USAF Target to Level 7 minimum |
Height Resolution | 0.01 µm |
Physical | |
Dimensions | 240(W) x 240(D) x 90(H) mm |
Weight | 3 kg |
Connection to computer | USB 3.0 (USB Type B to USB A; 1 m cable supplied) |
Power supply | Via USB |
Operating systems support | Windows 7/8/10 64bit |
Computer requirements | 4 GB RAM; USB 3.0 port; 64bit |
Operating temperature | 10 – 30°C |
* Maximum angle is stated for a fiber with 125 µm cladding diameter. Larger cleave angle can be measured using an angled fiber holder.
