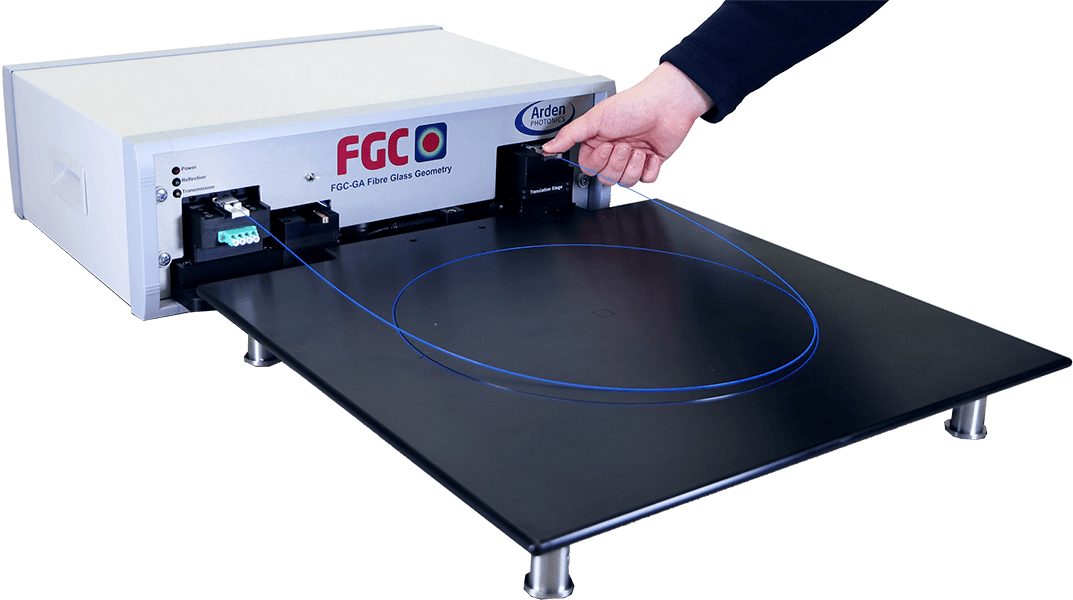

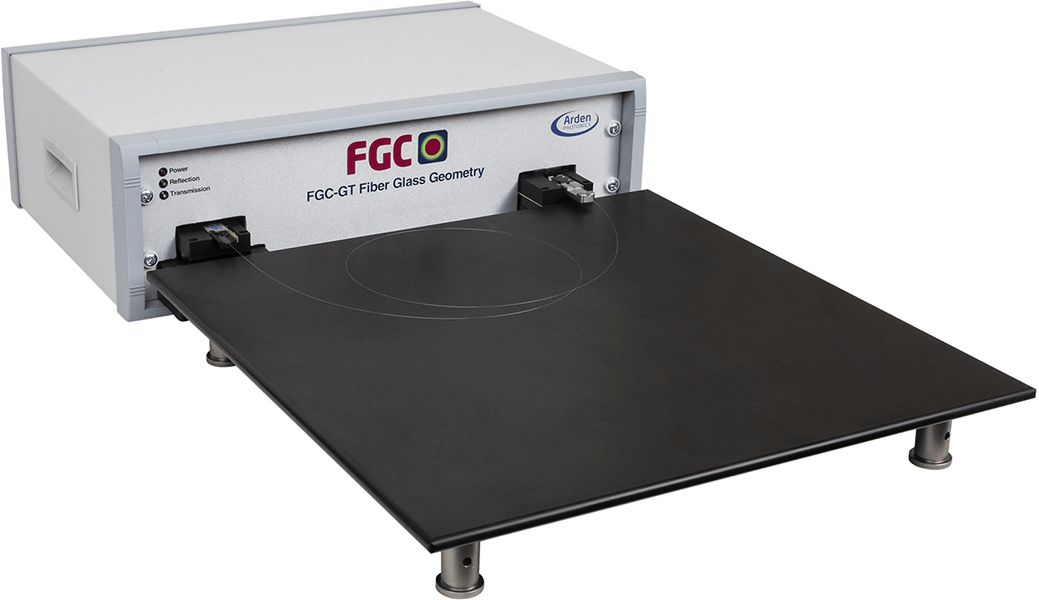

Measurement of special fibers such as octagonal fibers and double-clad fibers
Dark field illumination method gives a clear image of the fiber end face
Standards compliant - very confident in its accuracy
Highly repeatable geometric measurements in a short period of time
Traceable calibration
Wide range of fiber grippers including Arden, Fujikura, FITEL, Sumitomo, etc.
Built-in LEDs meet uniform injection conditions for optical core testing
Fiber optic manufacturing
Special Optical Fiber Manufacturing
Scientific Research Institutes

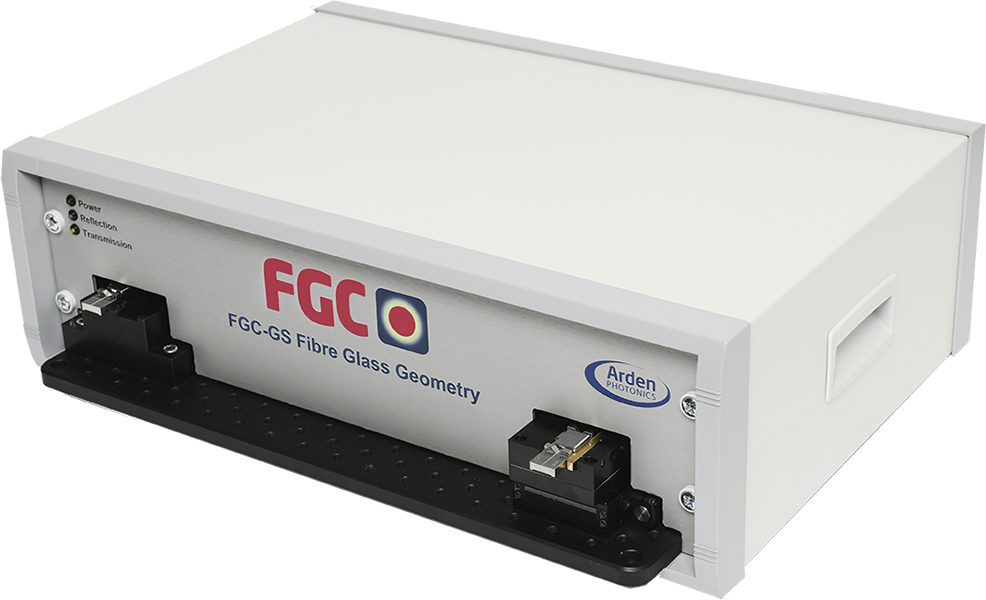

Optical | FGC-GS |
Max Field of View | 1200 µm |
Fiber Illumination – Reflection* | Darkfield illumination, 850nm LED |
Fiber Illumination – Transmission* | Multiple LED array, 850nm |
Optical | FGC-GS |
Max Field of View | 1200 µm |
Fiber Illumination – Reflection* | Darkfield illumination, 850nm LED |
Fiber Illumination – Transmission* | Multiple LED array, 850nm |
Measurement Capability | |
Measurement Time | < 10 seconds (excluding fiber prep) |
Fiber Diameter | up to 1000µm |
Special Fibers | Dual clad, Octagonal, PM, Multicore, PCF, etc. |
Physical | |
Weight | 11kg (with carry case 33kg ) |
Size | 0.5 x 0.5 x 0.2 |
Operating Temp | 10 – 30° C |
Computer Requirements | All FGC systems are supplied with a computer running up-to-date Windows operating system. |
Data Interface | 1 X USB 3.0 (USB B to USB A: 1m cable supplied) |
*May be fitted with other customized wavelengths.
**Repeatability is measured on the FGC-GS using a single 20/400 µm fiber without removing it from the unit at 22°C.
