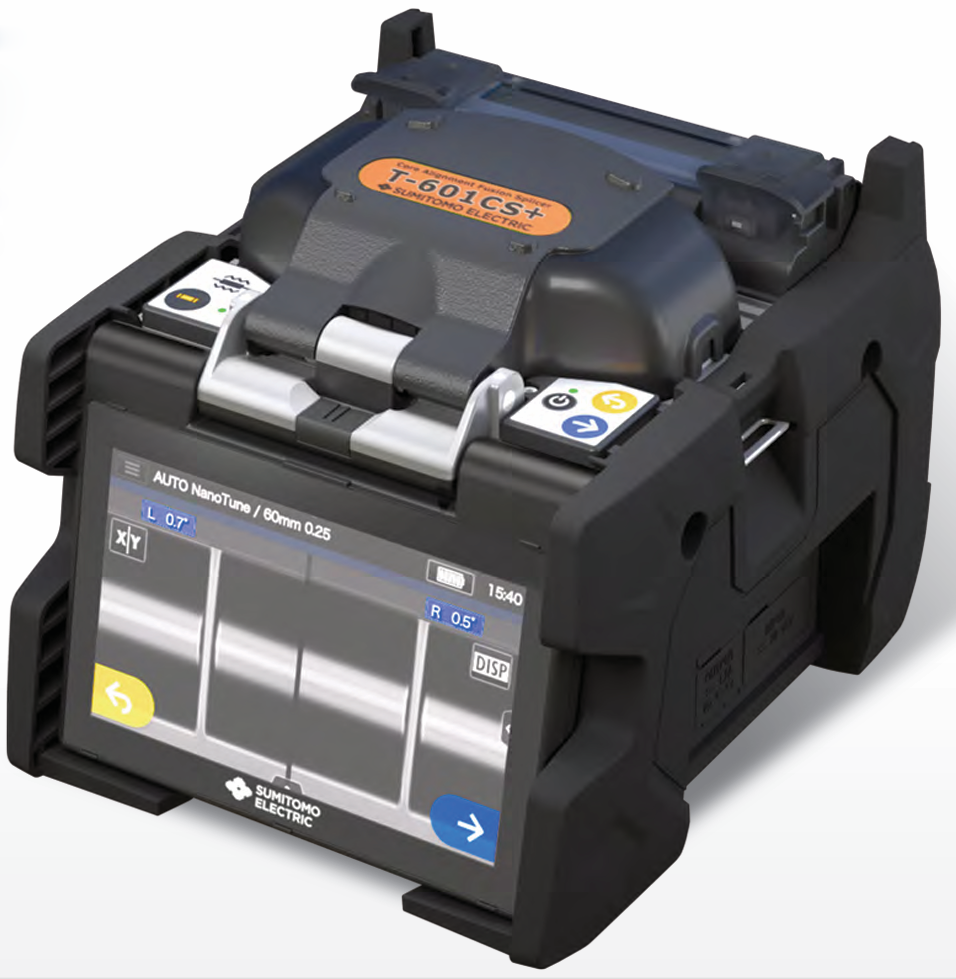

Six motors
Excellent performance
High speed operation Fusing 6s / Heating 15s
Ultra-low fusion loss MMF 0.01dB SMF 0.02dB (standard value)
Excellent user experience
New UI with touchable screen
Smartphone-like smooth operation
Long battery life
One charge can be used for 300 times of fusion and heating
Adapt to a variety of environments
Meet the IPx2 international waterproof standard, meet the IP5x international dustproof standard
Can be operated at 6000 meters high altitude, 76cm height drop, except for the top part of the 5 surface touch the ground can be normal use
Average loss of connection loss: SMF: ≤ 0.02dB; MMF: ≤ 0.01dB; DSF: ≤ 0.04dB; NZ-DSF: ≤ 0.04dB.
Standard connection time: the average connection time should be not less than 6 seconds (fast mode), 8 seconds (automatic mode).
Standard heating time: 15 seconds
The number of times the battery is used (fusion splicing and heating patching times): about 300 times
Fiber observation and magnification: two CMOS camera observation / 350 times magnification (zoom 700 times)
Program: fusion splicing program: maximum 300 groups; heating program: maximum 100 groups
Provide multi-functional fiber clamps: support 0.25mm/0.9mm tight-sleeve and loose-sleeve fiber, skinned fiber, city fiber, 3MM patch fiber.
Can save at least 10000 sets of splicing data in the built-in memory. Fusion splice image capture function: 200 splice capture images can be saved. 8G SD memory card: 50,200 pictures or 200,000 sets of data
Support optical attenuation fusion function: 0.1dB to 15dB (0.1dB unit)
Automatic fiber identification function: SMF/MMF/OTHER
Size, weight: 128Wx154Dx130Hmm (without anti-vibration rubber) ≤ 1.7kg (without battery) ≤ 2.0kg (with battery)
Display: with a 5-inch touch screen color LCD display, can be freely rotated forward and backward
With built-in DC battery (lithium-ion battery 10.8V) capacity 6400mAH
Altitude: 0 ~ 6000m, wind speed: 15m / s below
Electrode life: greater than 6000 times arc discharge
Construction and maintenance of fiber optic cables
