The industry's only dual independent heaters, greatly reducing operating time
Fusing time 11 seconds, heating time 25 seconds
Make the fusion loss to 0.05dB
High-definition touch screen with 5-inch color LCD display
Connects to SumiCloud™ via wireless LAN smart card
Number of fiber cores used: 1, 2, 4, 5, 6, 8, 10, 12
actual average loss: SMF (single-mode fiber): ≤ 0.05dB; MMF (multimode fiber): ≤ 0.02dB; DSF (dispersion-shifted fiber): ≤ 0.08dB; NZ-DSF (non-zero dispersion-shifted fiber): ≤ 0.08dB.

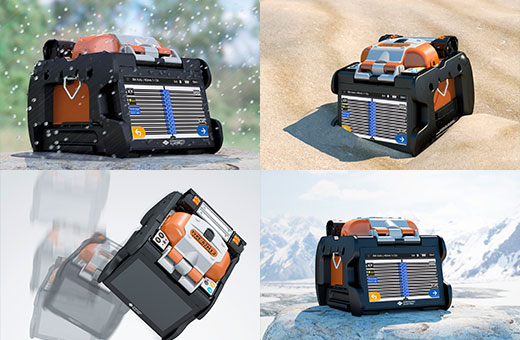

To be stable and durable, not because of the use of time and splicing loss becomes large.
Fusing time: fast mode 12 cores for 11 seconds, standard mode for 14 seconds
With a duplex heater, the heater can simultaneously heat two ribbon fiber optic cable, the heater can automatically start, heating speed is very fast, each core an average of ≤ 25 seconds (12-core ribbon fiber)
With built-in DC battery (lithium-ion battery 11.1V) capacity 6400mAH, can be fused (including heating) about 220 times (12 cores).
Display: with a 5-inch touch screen color LCD display, in strong light exposure can clearly see the screen.
Fusing program: maximum 200 groups; heating program: maximum 100 groups.
Can save at least 10,000 sets of splicing data in the built-in memory.
Fusing image capture function: 200 times of fusing capture screen can be saved.
Volume: 120Wx154Dx130Hmm (without anti-vibration rubber), light weight: ≤1.7kg (without battery) ≤2.0kg
Electrode life: 1500 times arc discharge.
Construction and maintenance of fiber optic cables
