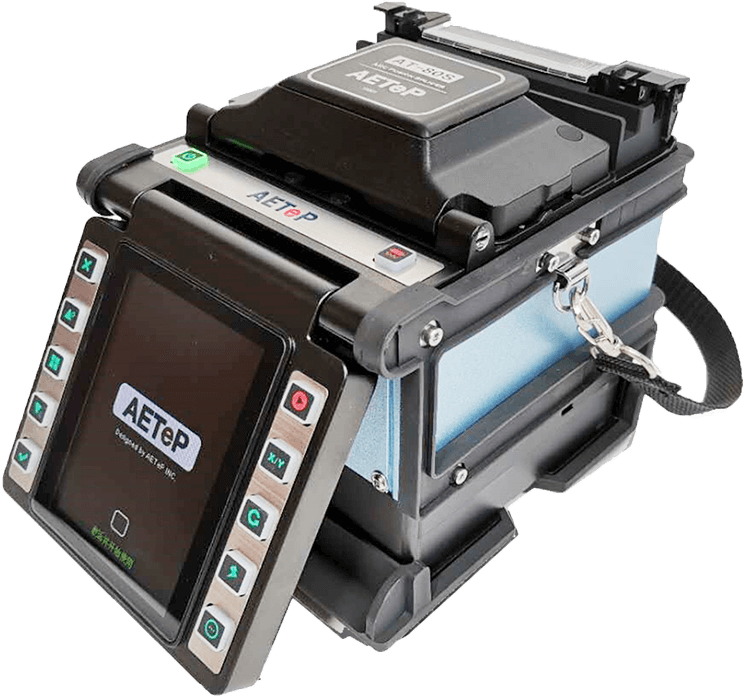

Six motor core alignment technology with ultra-low fusion loss
Fastest 6 seconds fusion time, 12 seconds heating time
Very fast start technology, 1 second into the work state
Follow the design concept that best meets the construction site
High-speed USB connection, Internet remote maintenance
Dust-proof, rain-proof, wind-proof, fall-proof, sturdy and durable
Average loss: SMF (single-mode fiber): ≤ 0.02dB; MMF (multimode fiber): ≤ 0.01dB; DSF (dispersion-shifted fiber): ≤ 0.04dB; NZ-DSF (non-zero dispersion-shifted fiber): ≤ 0.04dB; BIF (bend-insensitive fiber) ≤ 0.02dB
Splicing time: 10 seconds (standard mode SMF), 6 seconds (fast mode)
Heating cycle time: 12 seconds typical fusion splicing time
With built-in DC rechargeable lithium battery, can fusion splice (including heating) about 350 times.
Display: with a 4.1-inch touch screen color LCD display, can clearly see the screen under strong light exposure
Fiber optic view and magnification: can simultaneously display X/Y axis direction fiber optic or X-axis and Y-axis independent display, two CMOS camera observation, X or Y single-axis view magnification 300 times, X and Y dual-axis simultaneous display magnification 180 times.
Programs: fusion program: max. 200 groups; heating program: max. 30 groups.
At least 3000 sets of splicing data can be saved in the built-in memory.
Fusing image capture function: 100 times of splicing capture screen can be saved.
Tension test: ≥2N (standard).
Volume: 156Wx156Dx150mm, light weight: ≤ 1.9kg (without battery) ≤ 2.3kg (with battery)
Power supply, special battery use times: with a high-capacity battery, can be at least 350 times the connection and heating operation.
Electrode life: 5000 times arc discharge.
Altitude: 0～5000m, wind speed: below 15m/s
Construction and maintenance of fiber optic cables
