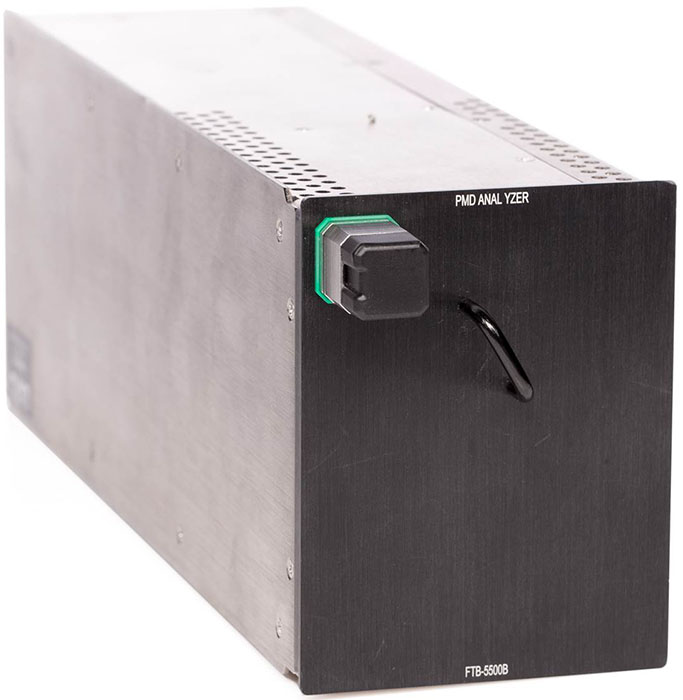

Polarization Mode Dispersion Analyzer - FTB-5500B
Test time of less than five seconds for any PMD range
No autocorrelation peaks for improved accuracy and traceability to NIST
Ideal for overhead fiber
Patented design*: tests across EDFA
Suitable for 100 Gbit/s

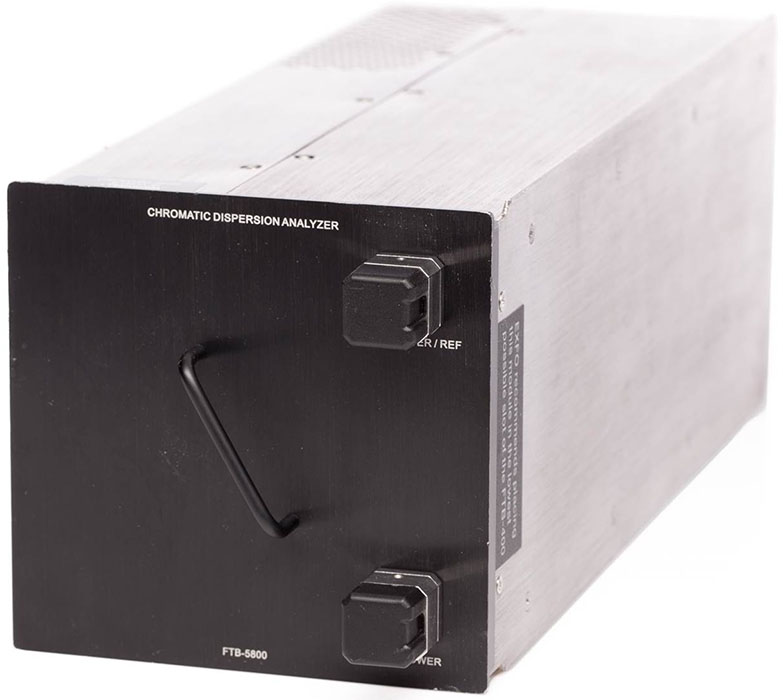

Dispersion Analyzer - FTB-5800
Complete CD characterization
Highly accurate phase shift method
No communication between source and receiver required
Patented design*: testing through EDFA
Suitable for 100 Gbit/s
PMD analyzer part.
(1) Analysis wavelength range: 1260～1675nm
(2) PMD test range: 0～115ps
(3) Resolution: ≤0.001ps
(4) Sensitivity: ≥ -45dBm
(5) Average test time: ≤ 5 seconds
(6) absolute accuracy (ps): ± (0.020 ± 2% * PMD)
(7) extended interferometry measurement, graphic display, and can provide second-order PMD value, can penetrate EDFA for link testing
CD analyzer section.
(1) Wavelength range (nm).
Test sampling range: 1530-1625
Analysis range: 1200-1700
(2) Wavelength test step (minimum): 0.1nm
(3) Test points: not less than 900, can be user-defined
(4) Dynamic range (dB): greater than 40dB
Can use EDFA to increase the instrument testing distance capability
(5) Wavelength accuracy (nm): 0.1
(6) Dispersion absolute accuracy (ps/nm).
20km G.652 1.6
120km G.652 3.1
20km NZDF 1.9
(7) Repeatability of dispersion (ps/nm)
20km G.652 0.04
80km G.652 0.2
120km G.652 1.1
(8) Zero dispersion wavelength repeatability (nm): 0.1nm
(9) Repeatability of dispersion slope (%): 0.03
(10) Test time per wavelength point: min: less than 1 sec
Accurate and comprehensive 10 Gbit/s, 40 Gbit/s and 100 Gbit/s qualification
Metro, core and long-haul network testing
Efficient identification of fiber types in Raman deployments using zero wavelength, CD slope and coefficients

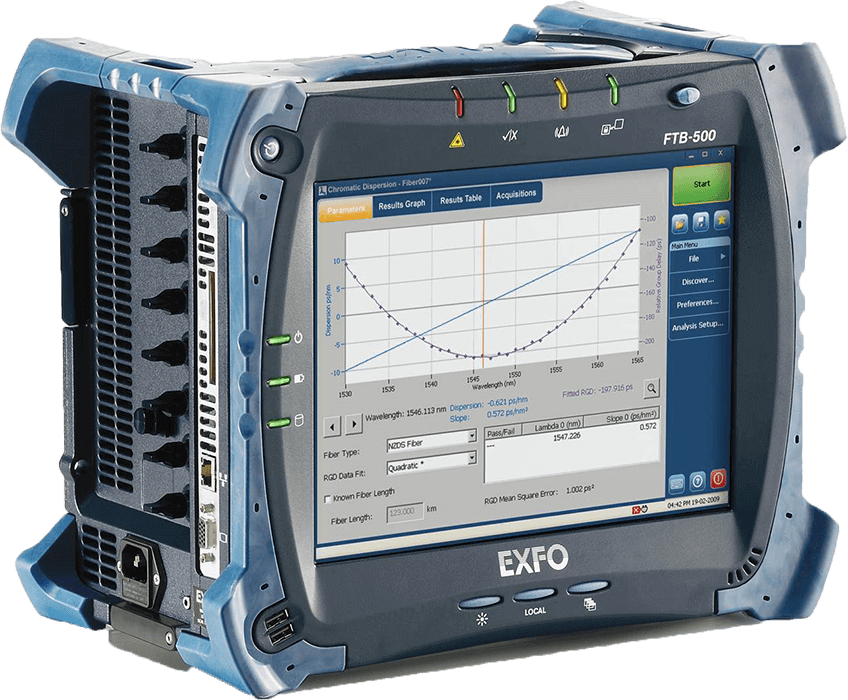

Installed in the compact FTB-2, FTB-2 Pro, FTB-200 or FTB-500 platforms
