1、On-site testing

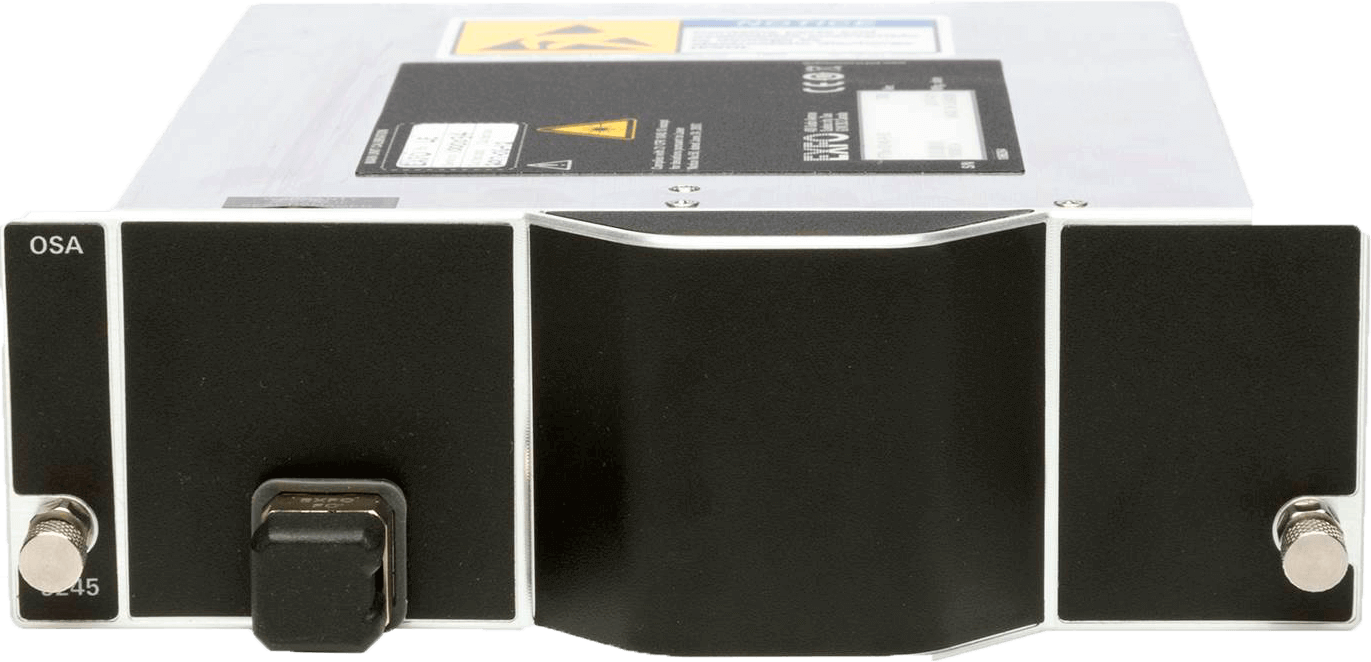

In-line measurement of 100G/200G/400G signals with Pol-MuxOSNR (FTBx-5255)
Industry's first all-in-one OSA covering all applications: high-speed (100G + in-line OSNR), CWDM, O and L-band testing
Portable DWDM/CWDM network spectral characterization solution
Very small OSA/transmission network solution that can be installed in a single platform (FTB-4 Pro)
IEC 61282-12 compliant Pol-Mux OSNR option
Large 10" display mounted on the FTB-2 and FTB-4 Pro platforms
2. Laboratory/manufacturing testing
Ideal for field and lab applications: compatible with FTB-2/FTB-2 Pro, FTB-4 Pro and LTB-8 platforms

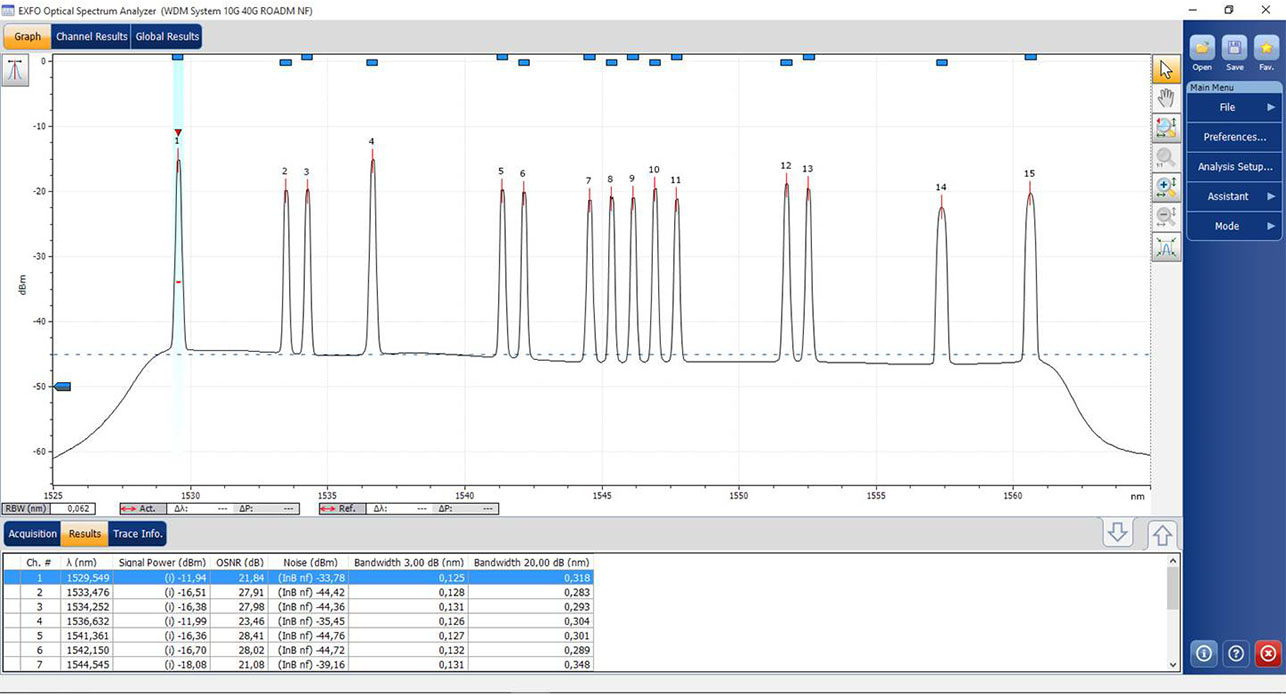

Flexible analysis of WDM, EDFA, drift, spectral transmittance, Fabry-Perot and DFB lasers
Provides multiple measurement results (SMSR, FWHM spectral width, 20 dB linewidth)
Supports one-button operation for easy setup and automated measurements
1、Spectrum measurement
Wavelength range (nm): 1250 to 1650
Wavelength uncertainty (nm): Minimum ±0.010
Resolution Bandwidth (RBW) (nm): 0.035
Wavelength linearity (nm): ±0.01
Wavelength repeatability 2σ (nm): ±0.003
Analysis mode :WDM, EDFA, drift, spectral transmittance, DFB, FP
2、Power measurement
Dynamic range (dBm) (per channel): -80 to 18, up to 23
Maximum safe total power (dBm) : 29
Absolute power uncertainty (dB): ±0.5
Power repeatability (dB): ± 0.02
3、Light measurement
Optical rejection ratio (dB): 45 at 0.2 nm (25 GHz) (typical: 50)
50 at 0.4 nm (50 GHz) (typical: 55)
Channel spacing: 12.5 to 200 GHz
Measurement time (s): (including scanning, analysis and display) <1.0
4. In-band OSNR measurement
OSNR dynamic range (dB): >35
OSNR measurement uncertainty (dB): ±0.5
Repeatability (dB): ±0.2
Data signal: up to 100 Gbit
Channel power measurement
Channel Wavelength Measurement
DWDM Network Analysis
Remote PHY deployment qualification
WDM field and lab applications
