Compact, entry-level OSA for deploying any type of WDM network
Handheld OSA with large display
Portable and lightweight
Ideal for wireline operators
Very intuitive user interface

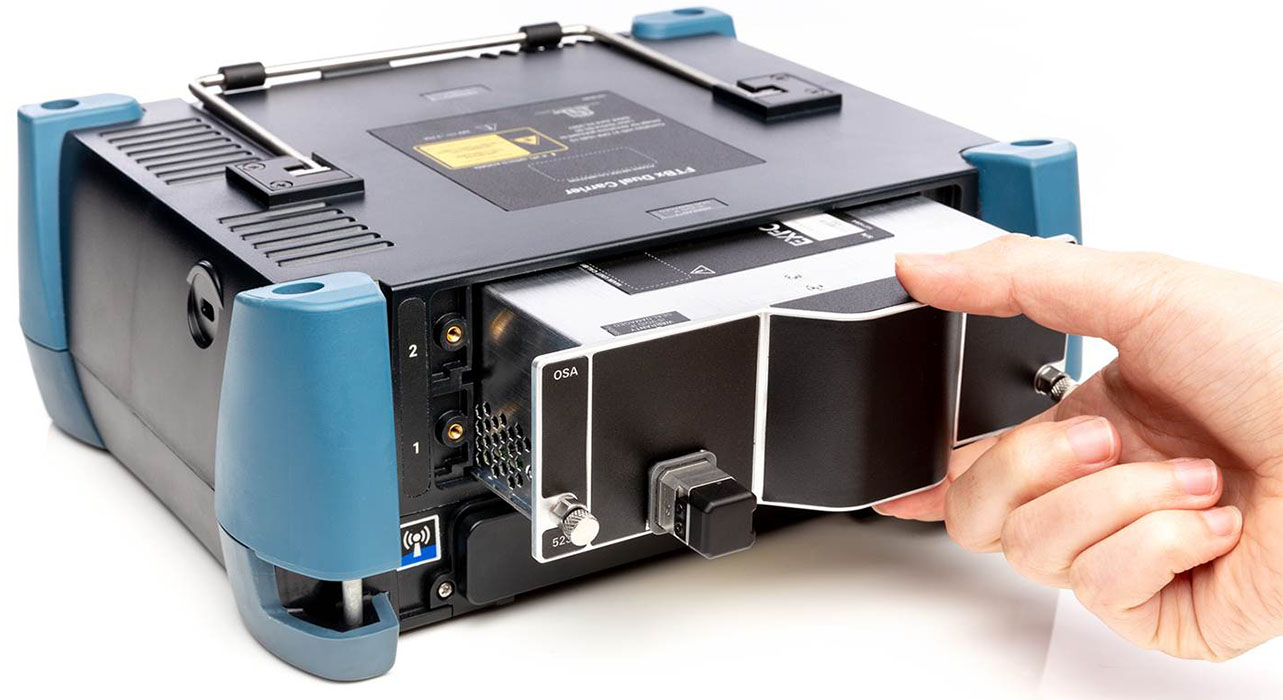

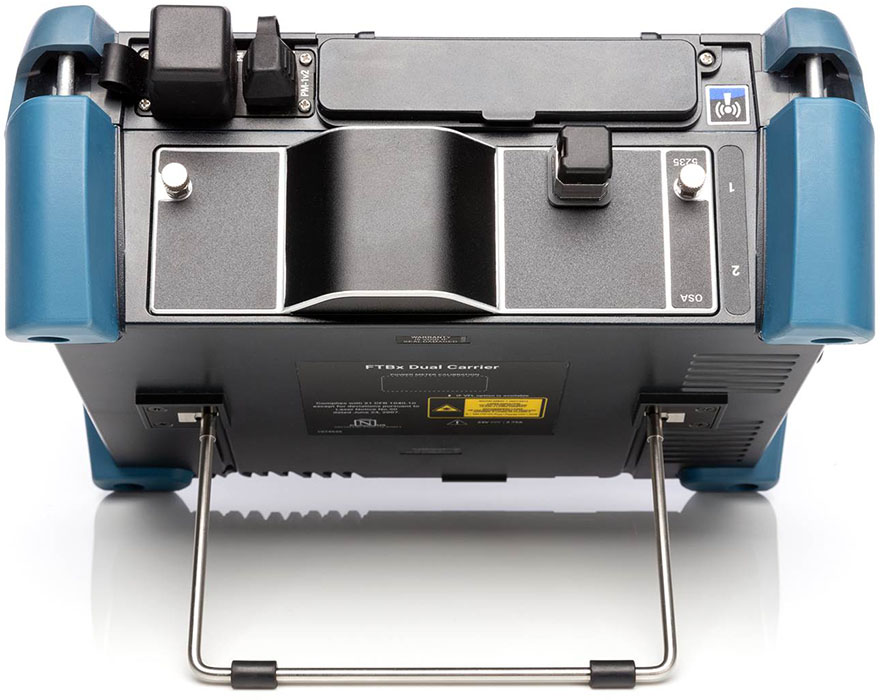

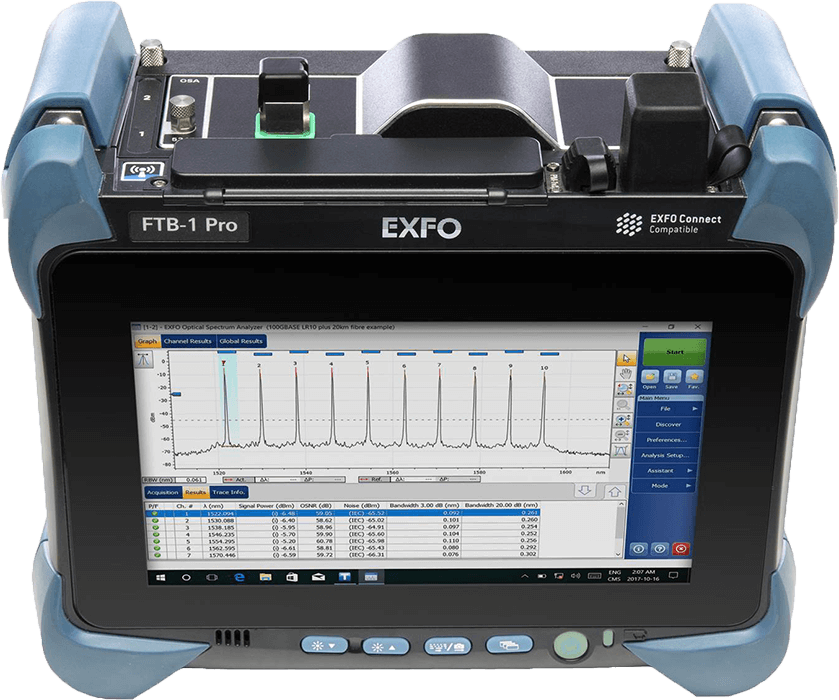

Can be installed in the FTB-1v2 DC, FTB-1 Pro DC, FTB-2/FTB-2 Pro and FTB-4 Pro platforms
Very reliable (crafted by a world-renowned handheld OSA manufacturer)
1、Spectrum measurement
Wavelength range (nm): 1250 to 1650
Wavelength uncertainty (nm): ± 0.06, ± 0.02
Resolution bandwidth (FWHM) (nm): ≤ 0.10 d, g
Wavelength repeatability (nm): ±0.005 h
Analysis mode: WDM and offset
2、Optical measurement
Optical rejection ratio at 1550 nm (dB): 31 at 0.2 nm (25 GHz) (typical value: 35)
40 at 0.4 nm (50 GHz) (typical: 45)
Channel spacing: 33 to 200 GHz, CWDM
PDL (dB): ±0.1 d
ORL (dB): >40
Measurement time (s): <1.2
3. Power Measurement
Dynamic range (dBm) (per channel): -65 to 23 dB
Maximum safe total power (dBm): 29
Absolute power uncertainty (dB): ± 0.6
Power repeatability (dB): ±0.1
Weight 1.2 kg (2.6 lb)
Channel power measurement
Channel Wavelength Measurement
DWDM Network Analysis
Remote PHY Deployment Qualification
