1. New non-damaging fiber optic cable finding function, replacing the previous cutting, bending, freezing and other traditional fiber optic cable identification methods
2. Support accurate search and identification of target fiber optic cables laid in manholes, tunnels, pipelines and overhead poles and other environments
3. Using the unique Rayleigh scattering technology, no conditions are required for the searched fiber optic cable:
Support cable end breakage or unterminated cable search capability
Support cable finding capability when the end of the cable is APC connector
4. Support simple OTDR test function: OTDR curve analysis, reflection peak, total loss, total length measurement, which can assist in determining the location of cable fault points
5. Support single fiber test function
6. Support video (vibration amplitude, ECG) + audio and other different display modes
7. Excellent anti-crosstalk ability

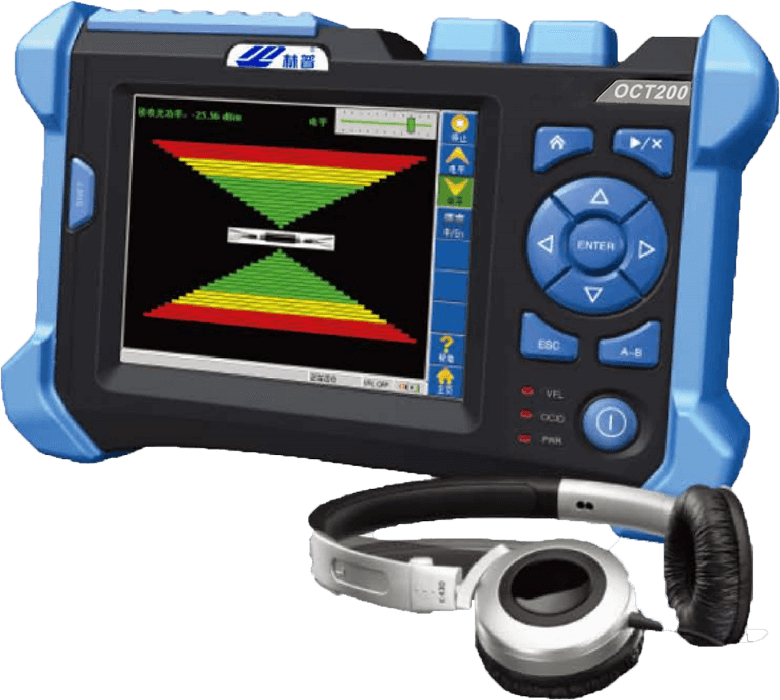

8. Handheld devices are compact and lightweight; large touch screen + quick keys, easy to operate
9. Automatic optimization of equipment parameters, suitable for different lengths of line testing
10. Support the provision of professional knocker
Measurement method: single fiber test
Measurement wavelength: 1550nm
Initial blind area: no blind area
Minimum output power of light source: -15dBm
Unidirectional optical cable loss: 28dB
Test distance: 40, 100Km
Signal-to-noise ratio: >25dB
Fiber optic interface: SM
Optical connector: FC/APC
Output modes.
Visual:Vibration amplitude + ECG mode (touch screen LCD)
Audio:Sound (corresponding to the intensity of the disturbance)
Display:5.6 inch touch screen
Weight: 1.5KG (including battery)
Battery: lithium battery, continuous operation " 14 hours
Accurately identify remote fiber optic cable according to single-sided fiber in pipeline, tunnel, manhole and overhead environment.
For communication operator's server room construction, line transformation, fiber optic cable cutting, specification management, resource census, duty maintenance, etc.
