Excellent optical performance to provide accurate and repeatable test results
Zero-button detection: 100% automatic detection - from connector insertion to data saving (auto-detection, auto-adjustment of brightness, auto-focus, auto-center image, auto-capture, auto-analysis, auto-save results and auto-reset)
Rapid detection possible (for MPO-12 connectors, the entire process from connection to analysis and saving results can be completed in less than 10 seconds)
Supports MPO connectors with up to 4 rows of 8/12/16 cores per row with one adapter
Multiple adapters available for single-core b and multi-fiber connectors (e.g. LC, SC, ST, OptiTap®, OptiTip®, MPO)

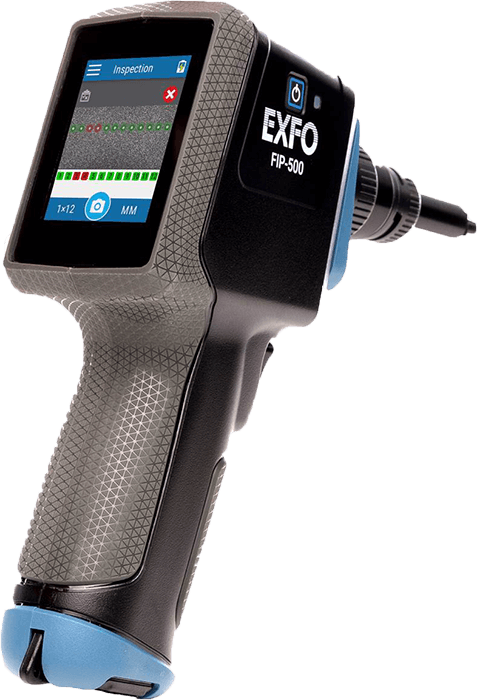

Features a smartphone-grade 2.4-inch color touch screen
Quick-connect design: switch between any adapter head with a quarter-turn
Can be tested all day without interruption:.
Long-lasting battery life
Local storage of test results - 1800 (MPO-12) or 10,000 (single core)
Self-contained connector endface analysis (based on IEC standards)
PDF reports available via mobile devices
End-to-end detection and analysis time: MPO-12: <10 s
MPO-24: <14 s
Field of view: 1.9 mm x 4.8 mm
Image sensor: 2 x 5 megapixel sensors
Light source: 2 purple LED indicators (405 nm)
Emission technology: Coaxial, pulsed
Display: 2.4-inch IPS color LCD (166 dpi) + capacitive touchscreen
CPU: 1.4 GHz dual-core
Connectivity: Bluetooth® and WiFi
Battery Type: Lithium-ion polymer (Li-Po) rechargeable battery life >7 hours
Local storage function Multi-cell: 1800 measurements
Single core: 10,000 measurements
Dimensions (H x W x D): 196 mm x 230 mm x 59 mm
Weight: 600 g
Server rooms, optical cross-boxes and head-ends
Data Center
Wireless (e.g. 5G, FTTA, DAA, small base stations)
Fiber to the Home (FTTH)
