Fully automated inspection of single core connectors through a one-step inspection process
Screen-free operation with pass/fail LED indicators
Comes with connector endface analysis (based on IEC or custom standards)
Supports the feature-rich ConnectorMax2 mobile app, compatible with Android™ and iOS™ devices
Full reporting capabilities available on mobile devices and EXFO test platforms
Up to one day of battery life - giving you peace of mind1
MF-enabled detectors are compatible with single-core and automated multi-fiber adapters
Manufacturing process can be automated using REST APIs upon request
1、WiFi Fiber Optic Endface Detector Specifications (FIP-4X5B)
Weight: 0.3 kg
Resolution: 0.55 µm
Image sensor: 5 megapixel CMOS
Visual inspection function: <1 µm
Field of view: 304 µm x 304 µm (high magnification) 608 µm x 608 µm (medium magnification) 912 µm x 912 µm (low magnification)
Light source: Blue LED
Grab button: All models equipped
Magnification button: All models available
Digital magnification: Three levels of magnification
Connector: Micro USB
Connectivity: WiFi 802.11g
Frequency band: 2.4 GHz
Smart device OS compatibility: Android 4.4 and above, iOS 9 and above
Endurance time: FIP-415B: ≥ 8 hours FIP-425B: ≥ 10 hours FIP-435B: ≥ 8 hours
Charging time ：≤4 hours
Distance range: 2.5 m
2、FIP-400B Specifications

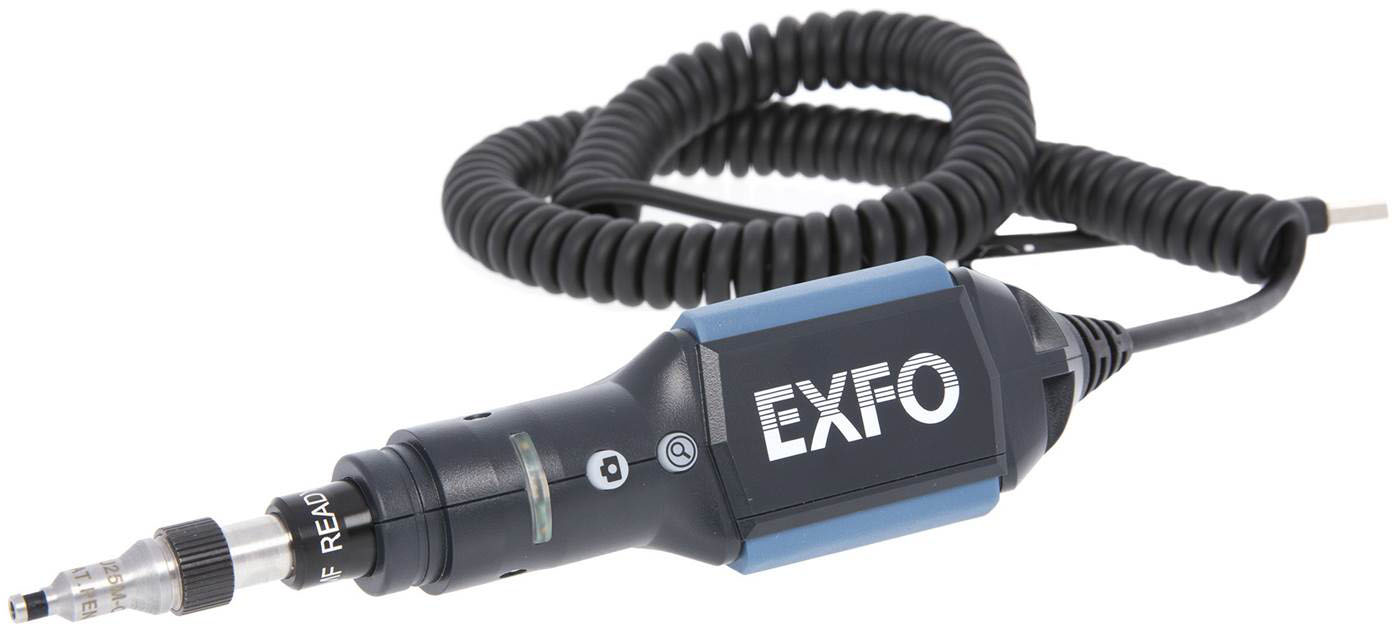

USB fiber optic end face detector specifications (FIP-4X0B)
Weight: 0.3 kg
Resolution 0.55 µm
Image sensor: 5 megapixel CMOS
Visual inspection function: <1 µm
Field of view: 304 µm x 304 µm (high magnification) 608 µm x 608 µm (medium magnification) 912 µm x 912 µm (low magnification)
Light source: Blue LED
Grab button: All models equipped
Magnification button: All models equipped
Digital magnification: Three levels of magnification
Connector: USB 2.0 minimum
Server rooms, optical cross-boxes and head-ends
Data Center
Wireless (e.g. 5G, FTTA, DAA, small base stations)
Fiber to the Home (FTTH)
