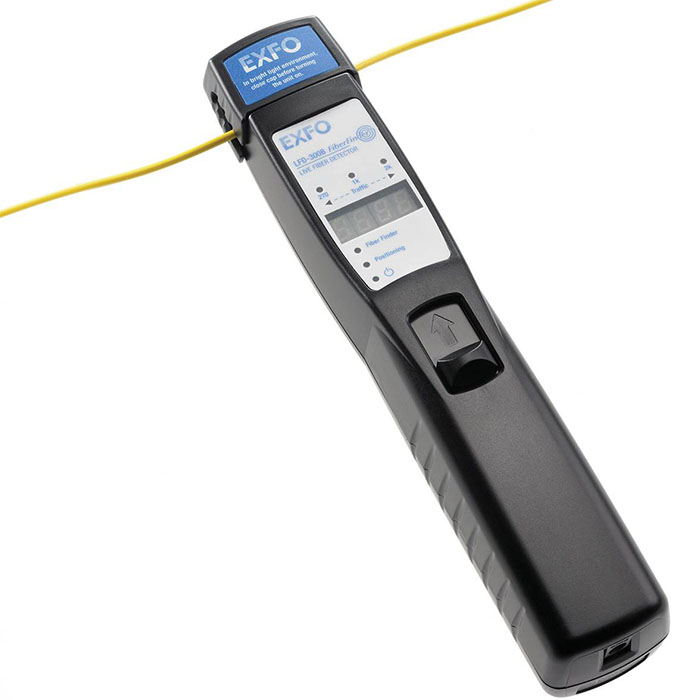

Use EXFO's FiberFinder™ feature to pinpoint specific load signal fibers
Generates minimal loss: ≤ 1 dB
Locates specific dark fibers using audio identification technology (270 Hz, 1 kHz and 2 kHz)
Improvement: Faster testing process, three times faster than before.
(1) It can precisely locate the specific load signal fiber and do fiber sequence online identification.
(2) Wavelength range: 800nm ~ 1650nm
(3) optical power test range: 25dBm ~ -35dBm, and has a power digital display
(4) Insertion loss:
Under all wavelengths: less than 1dB
1550nm: ≤0.5dB
1310nm: ≤0.3 dB
(5) fiber test type: 3mm casing, 1.6mm casing, 900µm
(6) 270Hz, 1kHz, 2kHz modulated signal detection function
(7) Power uncertainty: ±1dB.
(8) Measurement time: less than 6 seconds
(9) Weight: ≤0.35kg
Non-Intervening Power Measurement and Fiber Identification
