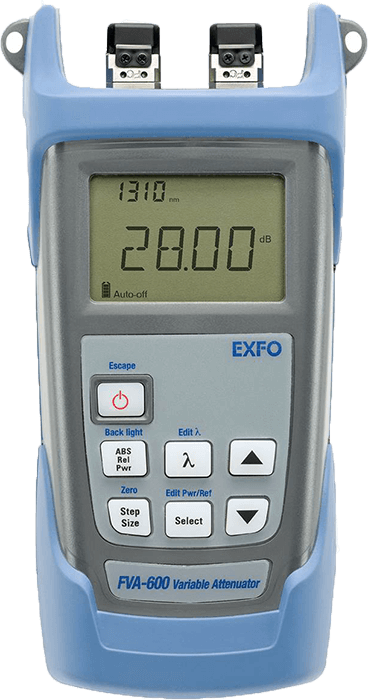

Very compact, rugged portable attenuator
Low cost of ownership: three-year warranty and recommended calibration interval
Supports three modes of operation: absolute, relative and power
Features a backlit display optimized for dark environments

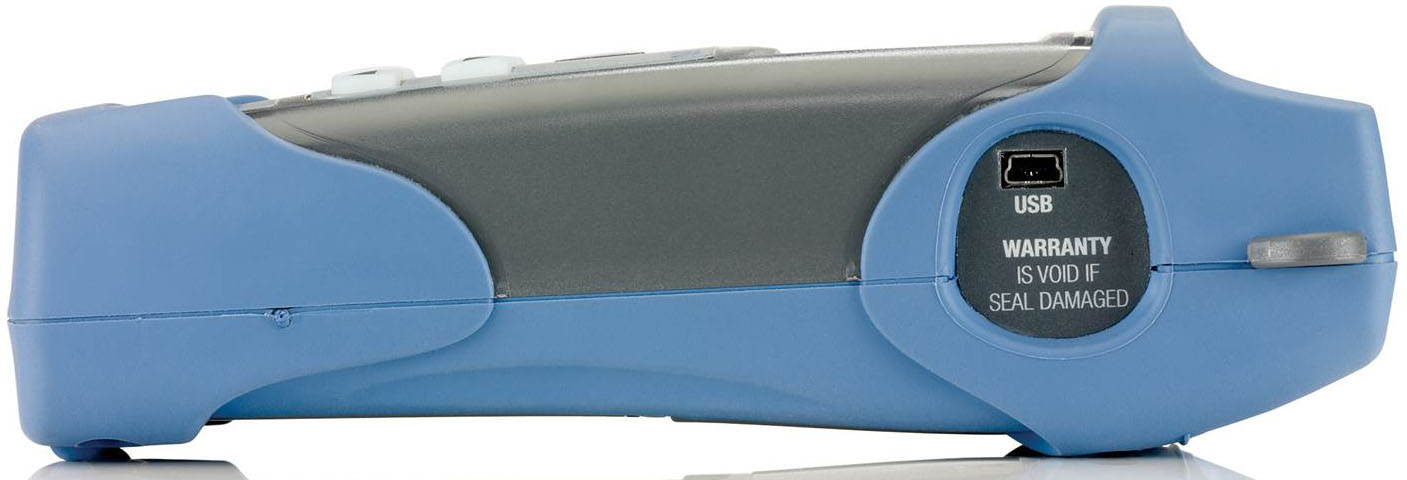

Provides USB-based remote control for easy integration of test processes.
Fiber type (μm): 9/125
Calibration wavelength (nm): 1310/1550
Wavelength range (nm): 1250 to 1625
Wavelength increment (nm): 1
Maximum attenuation (dB): 65
IL (dB): ≤1.5
Resolution (dB): 0.01
Linearity (dB): ±0.1
Repeatability (dB):±0.1
Optical return loss (dB):>50
Maximum input power (dBm):24
Handles power up to 24 dBm for a wide range of applications, including CATV and telecom companies
For BER testing: high optical resolution of 0.01 dB
For FTTx: standard 1310, 1490, 1550 and 1625 nm wavelengths
