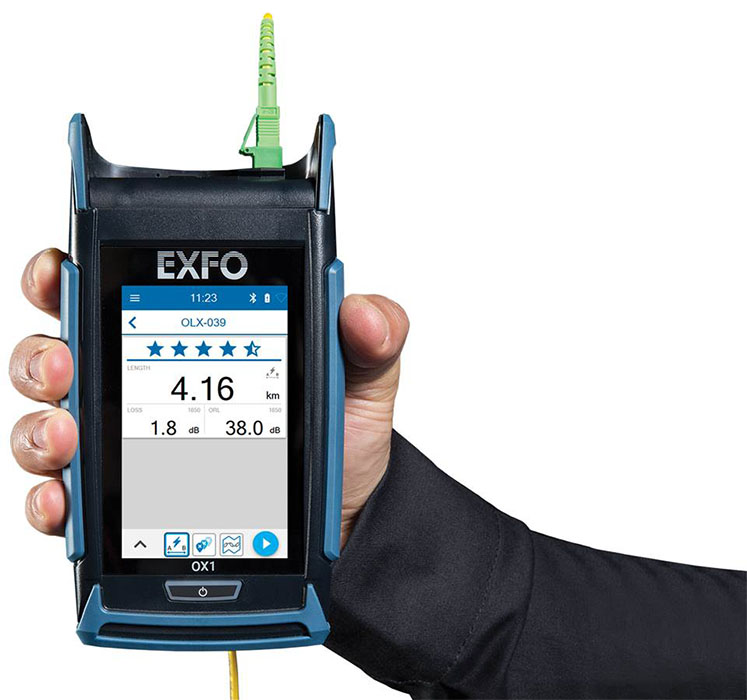

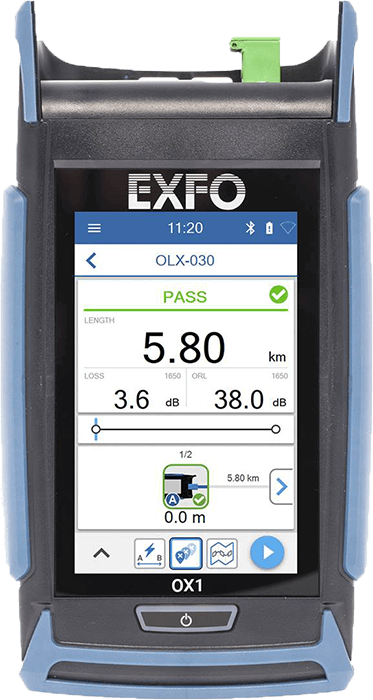

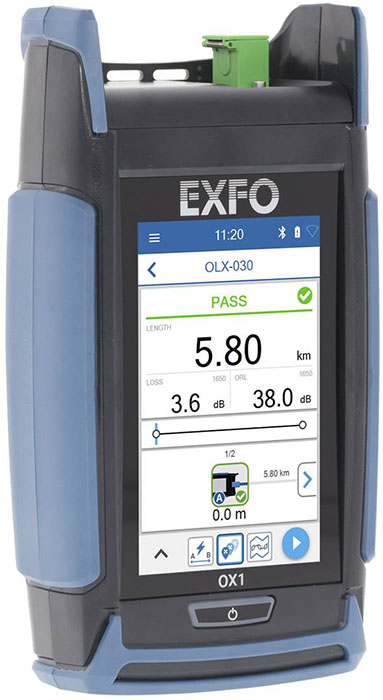

Display the KPI (length, loss, optical return loss and power) of a fiber link in less than 3 seconds with a single-ended test
Detect and locate common causes of faults on the spot with EXFO's patent-pending Fault Explorer technology
Intelligent equipment.
No setup required
Automatic wavelength selection
Built-in expertise with EXFO's patent-pending EXFO Advisor
(5-star rating system) to interpret link KPIs
Built-in power meter and light source
Can be used stand-alone as a pass/fail tester for routine installation and repair work, or combined with EXFO's TestFlow mobile app for cloud-based storage and complete documentation of tasks
Cost of ownership savings: Lifetime calibration with EXFO's patent-pending
Click-Out plug-in fiber optic connectors, so there's no need to return to the factory
Uses rechargeable batteries for more than 10 hours of continuous use on a full charge
Backed by a 3-year warranty
Wavelength: 1310 nm ± 30 nm, 1550 nm ± 30 nm, 1650 nm ± 10 nm: Integrated filter isolation.
Maximum link loss (dB): 15
Test time: Flash Advisor (distance, IL, ORL): 3 s
Fault Explorer (distance, IL, ORL, fault detection): 5 s minimum
Link Mapper (distance, IL, ORL, mapping of detectable network elements): 10 s minimum
Distance uncertainty: ±1.5 m
Beamsplitter type: Beamsplitter ratio up to 1:32
Display: 4" touch screen
Weight: 0.5 kg
Battery life >10 hours
Interface: WiFi 802.11 b/g/n 2.4 GHz, WPA2 encryption support
Bluetooth 4.2 with BLE, Class 2 (4.0 smartphone compatible)
Single-mode fiber link verification and troubleshooting for up to 40 km (point-to-point)
FTTx service activation: GPON, EPON, XPGS-PON, 10GE EPON
FTTx last mile installation and repair, including non-disruptive service testing
Last mile/access network installation and repair
MDU deployment
Fiber quality testing
Power testing
Insertion loss and optical return loss testing
Fiber break location
Fault identification and localization (fusion splice, connector, macrobend)
