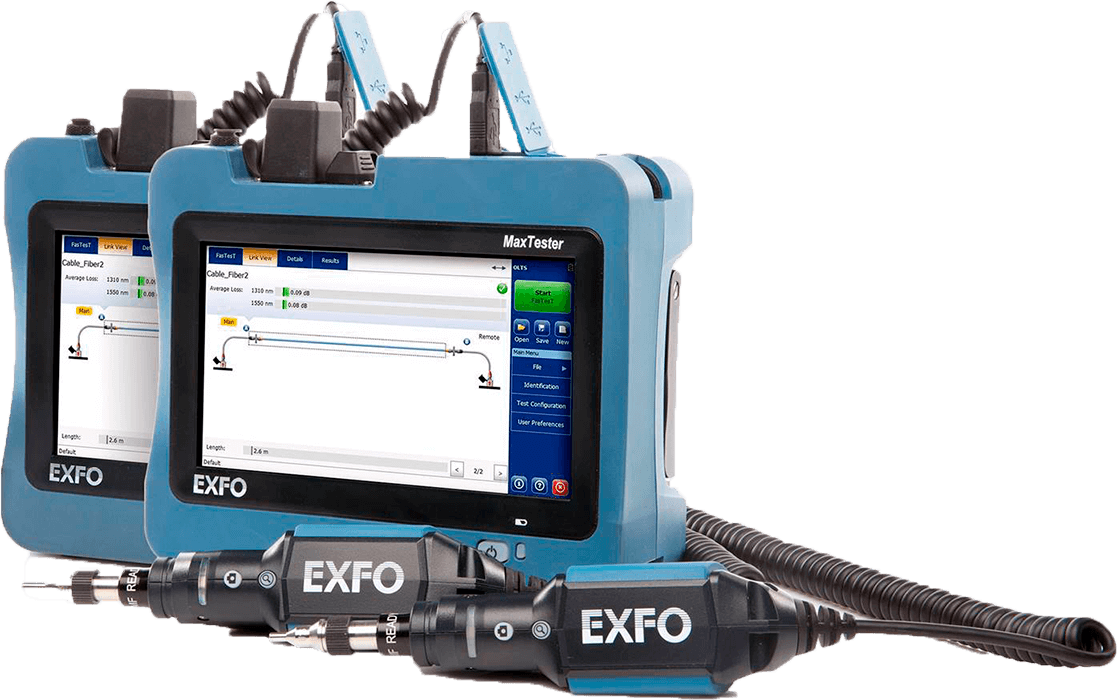

7-inch high-resolution touch screen - the largest on the market
FasTesT performance leadership: two fibers can be verified on two wavelengths in 2.6 seconds
Self-contained help and diagnostics to eliminate reference errors and abnormal losses
Compliant with ANSI/TIA and ISO/IEC ring flux requirements
Fully automated fiber inspection: one-step fiber double-end pass/fail analysis
Simultaneous verification against multiple industry standards
Professional PDF reporting capabilities
Optional optical return loss measurement (MAX-945)
Batch processing of results via FastReporter 2 software
Industry-best single-mode testing range of up to 160 km
Supports EXFO Connect for cloud-based test asset management.
1、Power meter parameters: Standard Optional high power
Detector type: InGaAs GeX
Measurement range (dBm): 5 to -75 25 to -50 e
Uncertainty: ± (5% + 32 pW) ± (5% ± 10 nW)
Wavelength range (nm): 800 to 1650 800 to 1650
2, light source parameters
Output power (dBm): multimode: -25, single-mode: 2.5
Output power stability (dB): ± 0.05 (more than 8 hours)
Spectral width (FWHM) (nm): 850 nm: 30 to 60, 1300 nm: 100 to 150
3, FASTTEST loss / length specifications
Test speed : FasTesT duplex: 2.6 seconds (two wavelengths, unidirectional, automatic, IL + fiber length)
FasTesT simplex: 5 seconds (two wavelengths, one-way, automatic, IL + ORL + fiber length)
Wavelength (nm) four wavelengths 850 ± 20, 1300 ± 20, 1310 ± 20, 1550 ± 20
MM: 850 ± 20, 1300 ± 20
SM: 1310 ± 20 , 1550 ± 20
Length measurement range (km): multimode: 20, single-mode: 160
Length measurement uncertainty: ± (0.5 m + 0.5% x distance)
Link loss qualification
Network Validation
Data Center
Enterprise network structured cabling
