Smart app connectivity via Bluetooth: report data from the field, save in the cloud and manage workflows

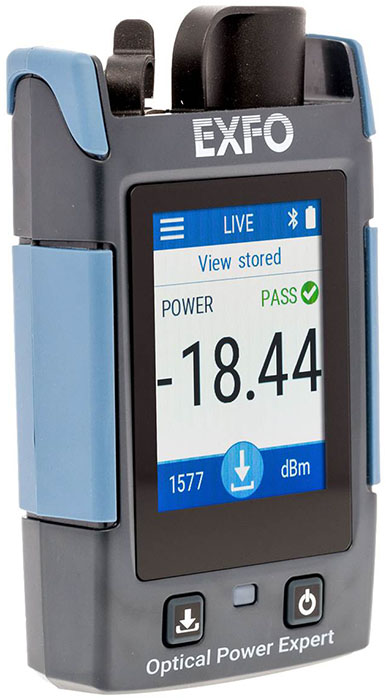

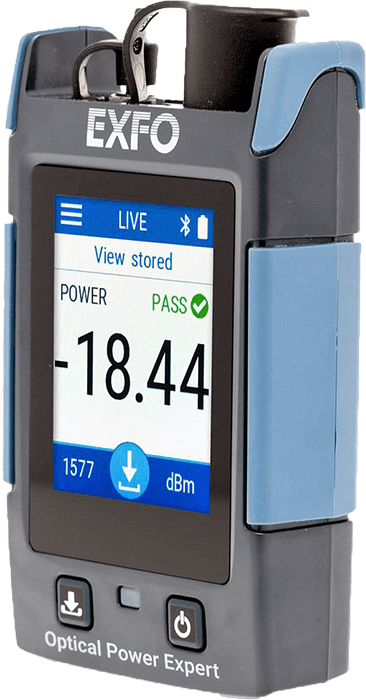

Easy to use: compact, colorful touch screen and intuitive user interface
Rugged: IP54-rated design for dust and water resistance
Time-saving features: no offset zeroing, quick start-up
Visual fault locator (available on the PRO model)
Data storage
Error-free, automatic wavelength identification and switching (available on the PRO model)
Three-year warranty and calibration interval.
Detector Type: InGaAs
Power measurement range: standard power range 10 dBm to -70 dBm; high power range 26 dBm to -50 dBm b
Power uncertainty:±5% (guaranteed)
Available measurement units: dB, dBm, Watt (W, mW, nW, pW)
Calibration wavelengths (nm): 45 calibration wavelengths.
Visual fault locator: Yes (3 modes - continuous, 1 Hz, 4 Hz)
Automatic wavelength identification: Yes
Automatic wavelength switching: Yes
Wavelength combination: Yes
Audio detection: 270 Hz, 330 Hz, 1 kHz, 2 kHz
Dimensions: 133 mm x 78 mm x 30 mm
Display size: 2.8 in
Weight: (with battery) 225 g
Display type: Color capacitive touch screen
Battery charge: 8 hours of battery life (continuous use)
Interface: Bluetooth 5.0 with BLE
Storage capacity: 100 test results for local reading
Measure optical power (dBm) and insertion loss (dB)
Fiber optic tracking
All telecom networks, including.
› Passive optical networks (PON)
› 5G deployments
› FTTx
› LAN/WAN access networks and enterprise networks
› CATV
› Military Applications
Wavelengths can be combined for GPON, XGS-PON, NG-PON2, RFoG
CWDM and DWDM ITU channels
