Testing via high port count splitter (up to 1x128)

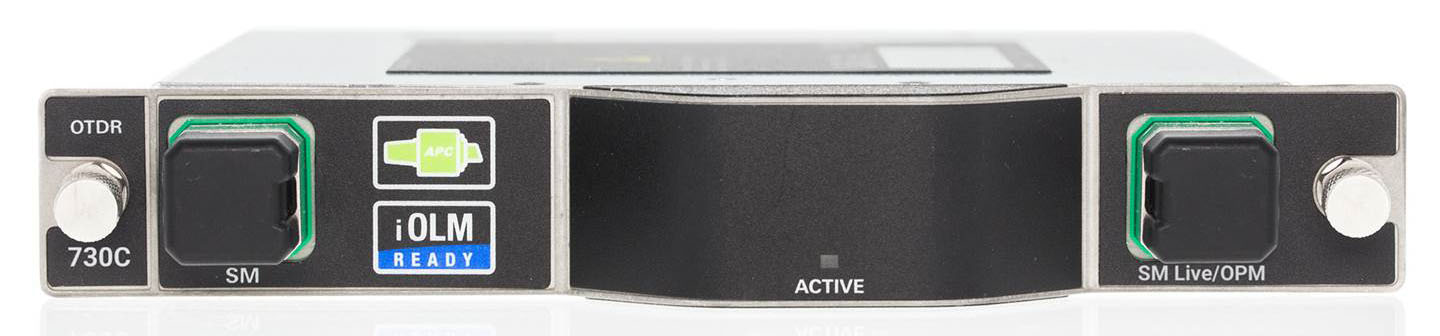

Single-mode port available for in-service troubleshooting, with 1490/1550 nm power meter
Dynamic range up to 39 dB
EXFO Connect compatible: automated asset management; data transfer to dynamic database via the cloud

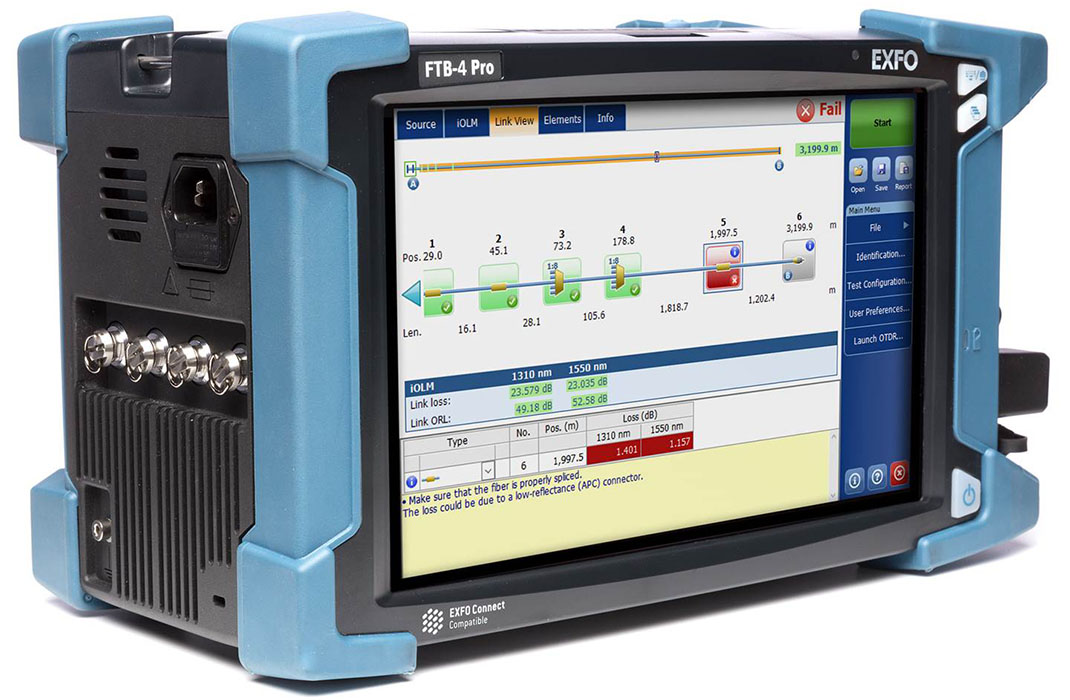

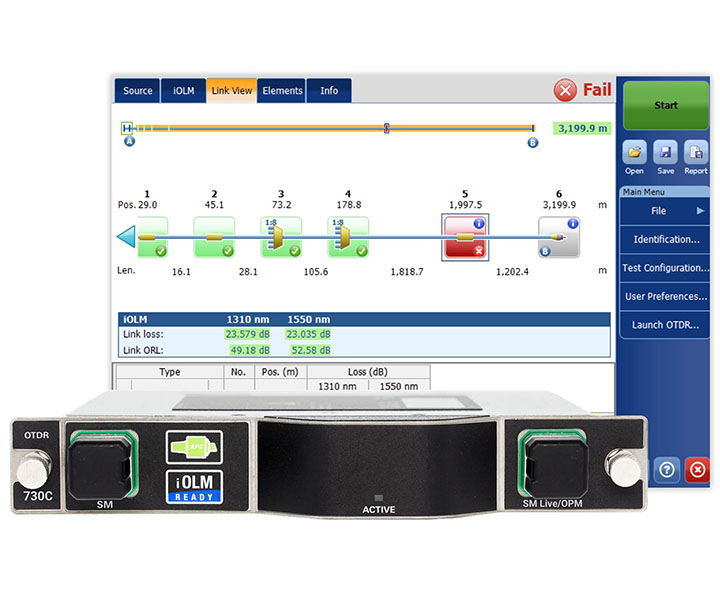

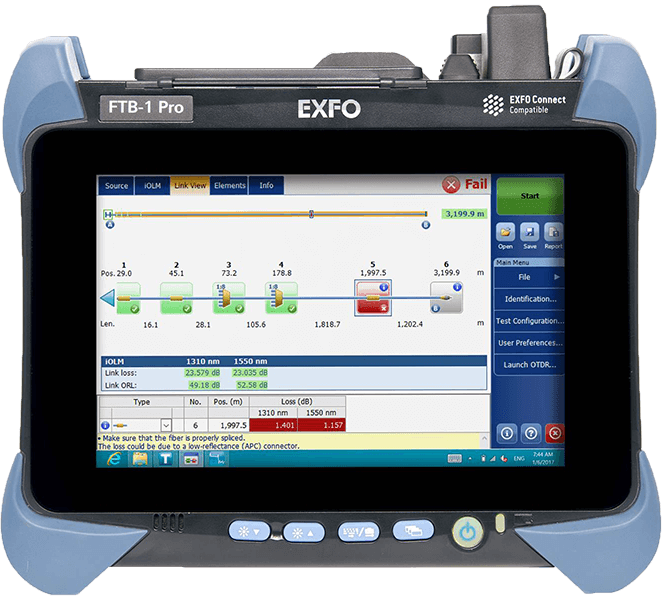

Supports iOLM: single-click operation to start multiple acquisition processes with easy-to-understand graphical display of pass/fail results for FTB-1/-2/-4 platforms
Wavelength (nm): 1310 ± 20/1550 ± 20/1625 ± 10/1650 ± 5
SM in-line port built-in filter 1625 nm; 1650 nm.
Dynamic range at 20 ms (dB): 39/38/39/39
Event blindness (m): 0.5
Attenuation blind area (m): 2.5
Pulse width (ns): 3 to 20,000
Linearity (dB/dB): ±0.05
Loss threshold (dB): 0.01
Loss resolution (dB): 0.001
Sampling resolution (m): Single mode: 0.04 to 10
Sampling points : up to 256000
Distance uncertainty (m): ± (0.75 + 0.0025% x distance + sampling resolution)
FTTx/MDU testing challenges within PON networks
Access Network Testing (P2P)
Metropolitan area network link testing (P2P)
Passive Optical Local Area Network (POL)
