Dynamic range of up to 36 dB for single-mode testing
Event blindness down to 0.7 m and attenuation blindness up to 3 m
In-line fiber testing at 1625 nm
Mixed singlemode/multimode wavelengths
Ring flux (EF) compliance: provides EF-compliant multimode test results using an external injection mode modulator

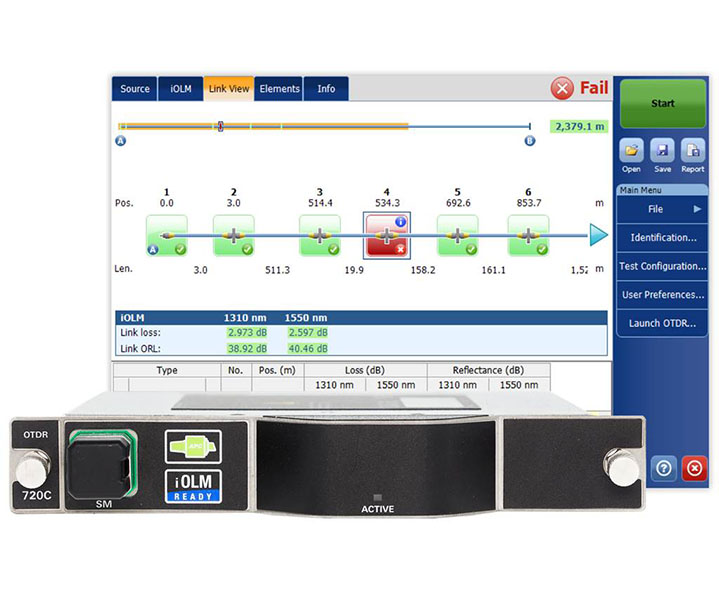

iOLM support: Single button operation to start multiple acquisition processes with easy-to-understand graphical display of pass/fail results

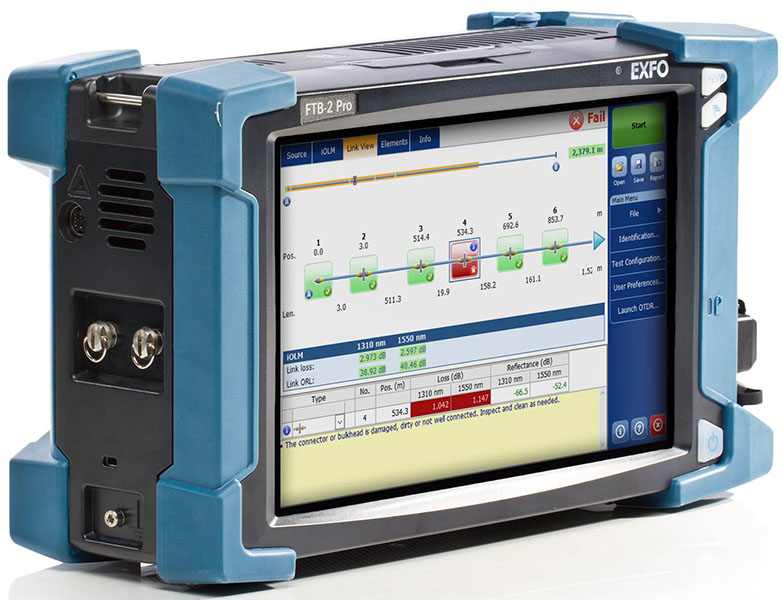

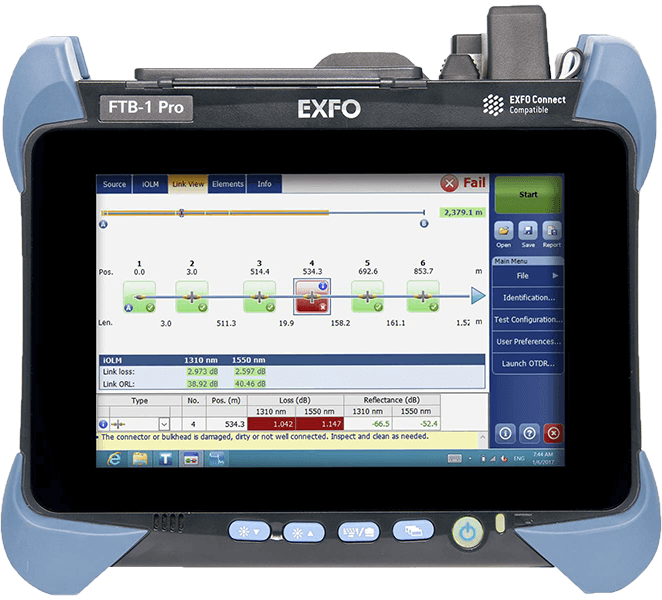

Suitable for FTB-1/-2/-4 platforms
Wavelength (nm): 850 ± 20/1300 ± 20/1310 ± 20/1550 ± 20/1625 ± 10
SM in-line port built-in filter 1625 nm.
Dynamic range (dB): 27/29/36/35/35
Event Blind Zone (m): Singlemode: 0.7 Multimode: 0.5
Fading blind area (m) Singlemode: 3 Multimode: 2.5
PON blind area (m) 35
Pulse width (ns): 3 to 20,000
Linearity (dB/dB): ±0.05
Loss Threshold (dB): 0.01
Loss resolution (dB): 0.001
Sampling resolution (m): Multimode: 0.04 to 5 Singlemode: 0.04 to 10
Sampling points : up to 256000
Distance uncertainty (m): ± (0.75 + 0.0025% x distance + sampling resolution)
Access network set-up and troubleshooting
FTTx/PON testing via splitters (up to 1x32)
Central Office (CO) link verification
Data center and private networks
LAN/WAN qualification
Front/backhaul (FTTA, FTTT, RRH, DAS and small cells)
