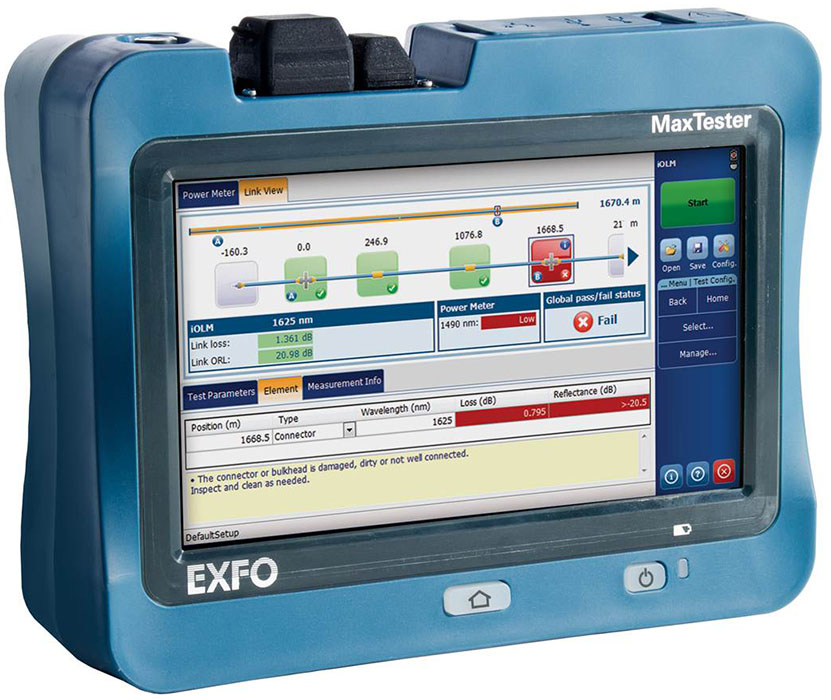

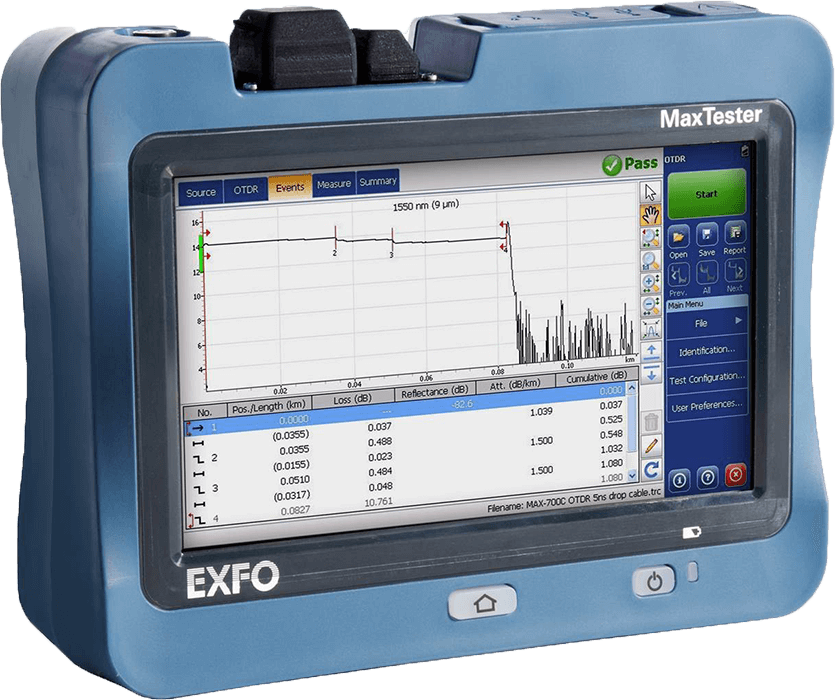

Strong and durable, lightweight and portable, borrowed from the tablet design, dedicated to outdoor environments
7 inch outdoor enhanced touch screen - larger screen size in handheld tester
Up to 12 hours of endurance
Dynamic range of up to 36 dB for single-mode and up to 29 dB for multimode

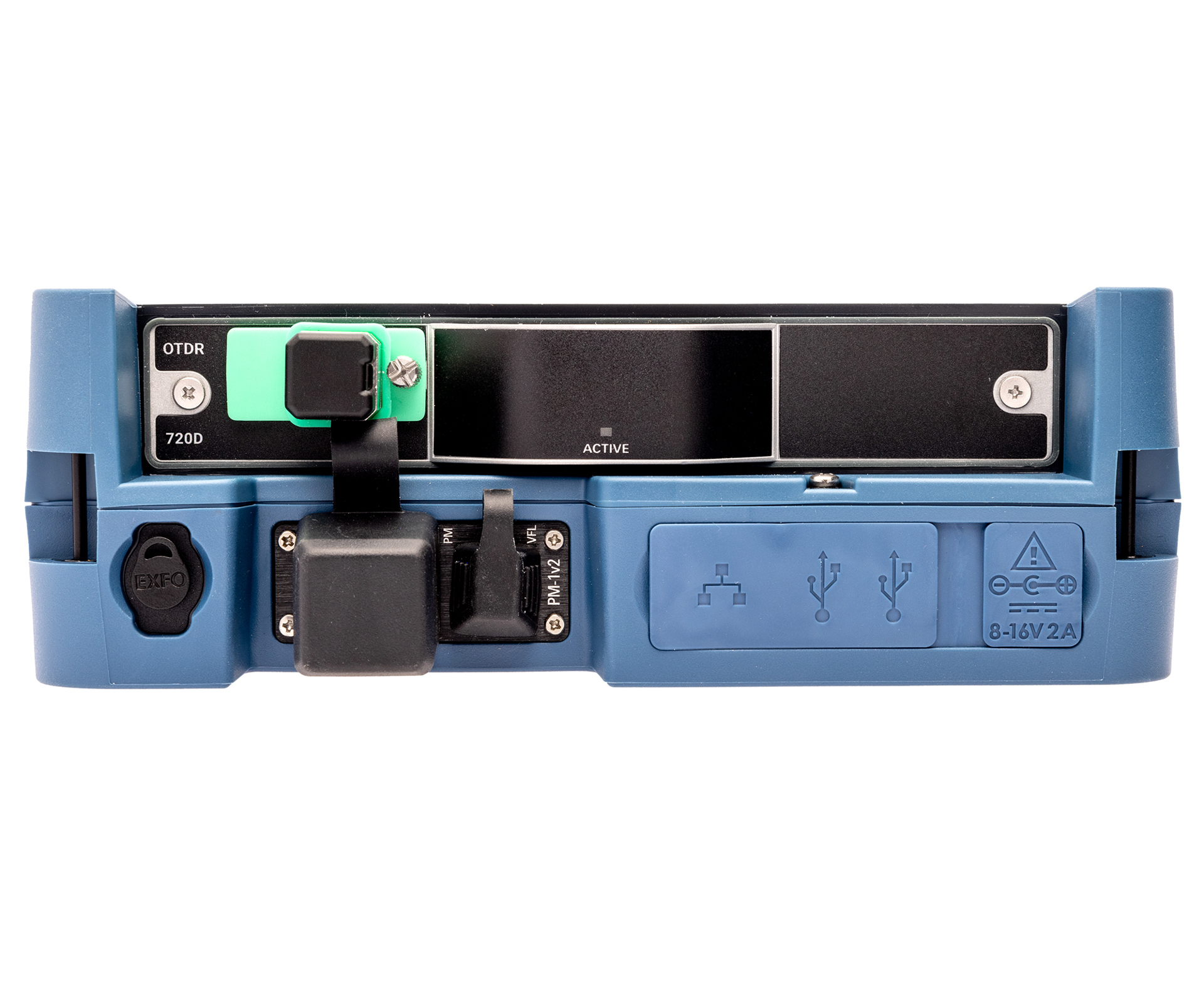

Optimize fiber processing by connecting OTDR, light source, and power checker with a single port
iOLM support
1650 nm FTTx in-service OTDR test with optional online GPON/XGS-PON power meter
Display: 7 in (178 mm) outdoor enhanced touch screen, 800 x 480 TFT
Interfaces: Two USB 2.0 ports, RJ-45 LAN 10/100 Mbit/s
Storage: 2 GB memory (20,000 OTDR profiles, typical)
Battery: built-in lithium battery for 12 hours of continuous operation
Wavelength (nm): 850 ± 20/1300 ± 20/1310 ± 30/1550 ± 30/1650 ± 15
On-line wavelength(nm): 1650, isolation: 50 dB from 1265 nm to 1617 nm
Dynamic range (dB): 27/29/36/35/35
Event Blind Zone (m): Singlemode: 0.7 Multimode: 0.5
Fading blind area (m) Singlemode: 2.5 Multimode: 2
PON blind area (m) 35
Pulse width (ns): 3 to 20,000
Linearity (dB/dB): ±0.03
Loss Threshold (dB): 0.01
Loss resolution (dB): 0.001
Sampling resolution (m): Multimode: 0.04 to 5 Singlemode: 0.04 to 10
Sampling points : up to 256000
Distance uncertainty (m): ± (0.75 + 0.0025% x distance + sampling resolution)
Access network engineering construction and troubleshooting
FTTx/PON testing with a splitter (up to 1x32)
The FTTx service is enabled: GPON, EPON, XGS-PON, and 10GE EPON
Verify the CO link in the equipment room
Data Centers and private networks (Tier-2 verification)
LAN/WAN authentication
Forward/back pass (FTTA, FTTT, RRH, DAS and small base stations)
