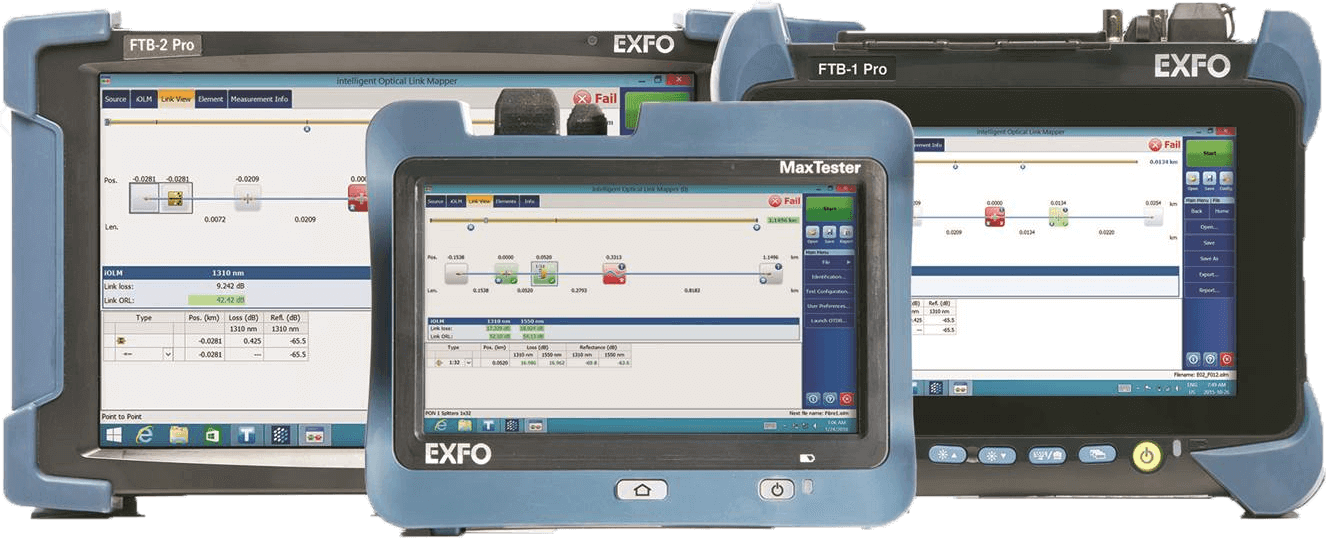

Products: EXFO iOLM Intelligent Optical Link Mapper

OTDR-based application that makes expert fiber testing accessible to all technicians.

Simplify OTDR testing and improve accuracy in characterizing various network topologies. iOLM uses intelligent algorithms that are well adapted to test requirements in a variety of situations. iOLM is still unmatched in the industry for its ability to dynamically locate and identify all network devices and faults at a very high resolution - all at the the touch of a button

Download
Product Features Product parameters Application Scenarios

Self-configuring device that dynamically adapts to any fiber optic link

Ability to perform multiple acquisitions for multiple wavelengths, displaying results in an iconic link diagram

Comprehensive troubleshooting and guidance

Unified bi-directional link diagram (patent pending)

OTDR curve file generation (.sor)

Automatic pass/fail thresholds based on TIA/IEC standards for enterprise networks/data centers (optional)

Simultaneous testing of two fibers via loopback test mode

Measurement time: 20 seconds

Minimum fiber length after splitter or splitter group (in the case of multi-stage PON)

1:2 splitter 25 m

1:4 splitter 100 m

1:8 splitter 150 m

1:16 splitter 400 m

1:32 splitter 1000 m

1:64 splitter 3000 m

Point-to-Point Access Networks

FTTx Last Mile

LAN/WAN, enterprise network, data center validation

FTTx/PON MDU

Pre-transmission (FTTA, DAS, base station) and backhaul

Passive Fiber Local Area Network (POL)

Metro core network and long-haul network

CWDM/DWDM

Fiber optic cable validation (IL/ORL measurement)

Multi-fiber core MPO fiber optic cable validation
