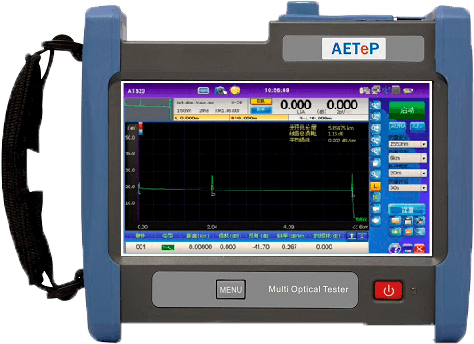

7-inch full touch screen, professional and fast user interface and experience
Excellent optical performance
Wide dynamic range: multiple models to meet the needs of different optical fiber testing
System start-up less than 10S
Support FTTX network and online testing
Endurance: 12 hours
Comprehensive features, support: linear view (standard) VFL (standard) stable light source (standard) worker (Vickers) seeker (seeker) WiFi PON online testing fiber end-face detection power meter
With OTDR centralized operation and maintenance management function
Support on-site system recovery and software upgrade function
Dynamic range:28dB to 45dB
Event blind zone minimum: 0.8m, attenuation blind zone minimum: 3m
Maximum sampling points: 256000
Ranging uncertainty:±(0. 75m+0.001%×fiber length+sampling resolution)
Optical power meter: 1310 nm/1550nm/1490nm, -50dBm~+27dBm, ±0.23dB accuracy
VFL: 650 nm±10 nm, 10mW
Fiber end face detector 200X/400X amplifier, USB interface
Stabilized light source 1310 nm/1550 nm, -7dBm
Display 7in (178mm), 800×480 TFT outdoor enhanced touch screen
Interface USB2.0 × 1, RJ45 × 1, LAN, 10M/100M; Macro SD × 1, supports up to 64GB
Storage 8GB memory (supports 80,000 OTDR curves)
Battery supports a maximum of 12 hours of continuous operation
Weight (including battery) <2kg
Languages Chinese, English, Spanish (French, Russian, Italian, Portuguese, German, Korean, Arabic are optional)
FTTH network construction, deployment, maintenance, certification
Local fiber optic network construction, deployment, maintenance and certification
Construction, deployment, maintenance and certification of metropolitan fiber optic network
