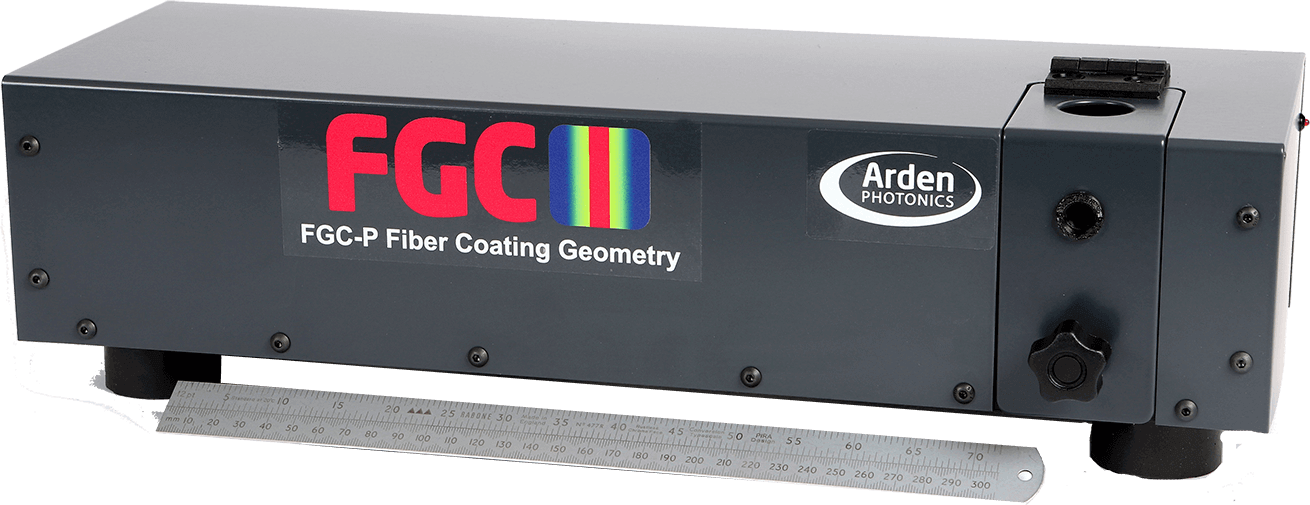

FGC-P 光纤涂层几何系统是一种紧凑、可靠的解决方案，用于测量光纤涂层的几何特性，光纤涂层直径为 100 μm 至 260 μm。 这种用户友好的全自动系统可快速、直接地测量光纤涂层几何参数，包括： 涂层直径 ，涂层非圆度 ，涂层-包层同心度
1.新型液体池设计可测量低至 60/100 μm 的细光纤
2.测量双层涂层——适用于许多标准和特种光纤
3.光纤可旋转多达 36 个不同的径向位置，实现精确测量涂层同心度和非圆度
4.符合标准 – 使用 IEC-60793-1-21 中描述的侧视参考测试方法
光纤生产制造
特种光纤生产制造
科研院所
|
Measurement Capability |
|
|
Fiber Type |
SM, MM, PM |
|
Coating Material |
Dual acrylate |
|
Coating Diameter |
100 µm to 260 µm |
|
Layer Thickness |
> 10 µm |
|
Measurement Time* |
< 10 s per angular position |
|
Angular Positions |
Customisable, 8 to 36 |
|
Repeatability** |
|
|
Outer Coating Diameter |
< 0.5 µm |
|
Outer Coating Non-Circularity |
< 0.5% |
|
Inner Coating Diameter |
< 0.8 µm |
|
Inner Coating Non-Circularity |
< 0.8% |
|
Outer Coating-to-Cladding Concentricity |
< 0.5 µm |
|
Inner Coating-to-Cladding Concentricity |
< 0.8 µm |
|
Optical |
|
|
Illumination – Side View |
Darkfield, 525 nm |
|
Max Field of View |
580 µm |
|
Image Sensor |
1.1-inch CMOS, 4112 x 3008 pixels resolution |
|
Exposure Range |
0.1 ms to 100 ms exposure time |
|
Physical |
|
|
Weight |
6 kg (with carry case 12 kg ) |
|
Size |
0.5 x 0.2 x 0.2 m |
|
Operating Temp*** |
10 – 30° C |
|
Power Supply |
15 V (external power supply supplied) |
|
Power Consumption |
60 W |
|
Computer Requirements |
All FGC systems are supplied with a computer running up-to-date Windows operating system |
|
Data Interface |
1 X USB 3.0 (USB B to USB A: 1 m cable supplied) |
*Analysing 100 scan lines and averaging 5 images
**Repeatability is measured using a 125/245 dual acrylate coated MM fiber sample over 12 angular positions without removing from the FGC-P
***Performance specification validated at 22° C
