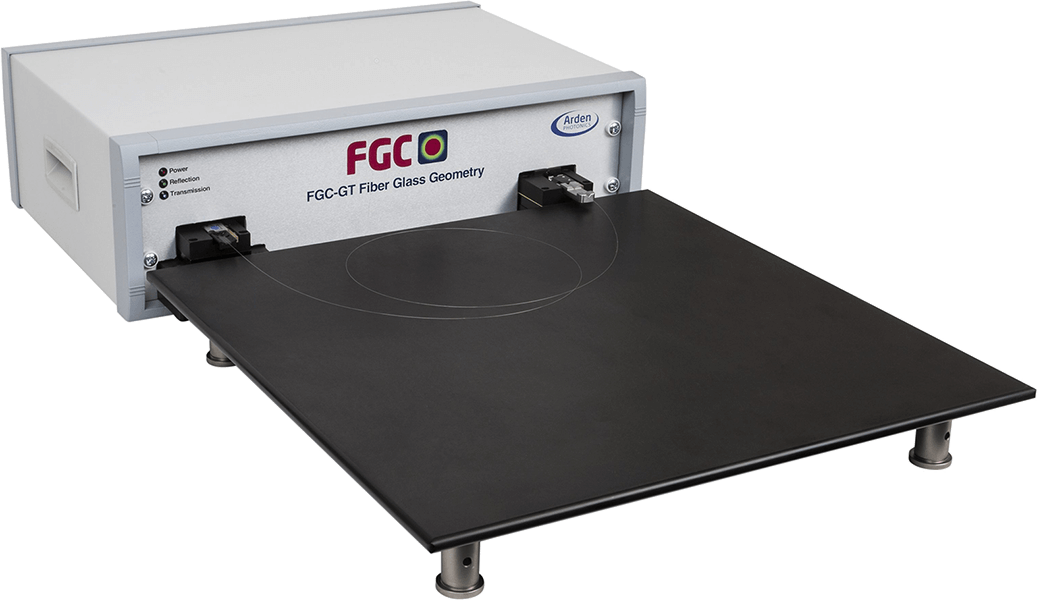

FGC-G光纤几何测试系统提供了光纤端面几何形状的高速自动测量。它采用了在标准IEC-60793-1-20附录B中描述的基准测试法（RTM）: 视频灰度技术。
暗视野照明
测量特种光纤比如八角型光纤和双包层光纤等
暗场照明法给出了光纤端面的清晰图像
符合标准 – 非常自信其准确性
短时间内高可重复性几何测量
可溯源校准
广泛适用各种光纤夹持器包括 Arden，Fujikura，FITEL，Sumitomo 等
内置LED满足光芯测试的统一注入条件
光纤生产制造
特种光纤生产制造
科研院所

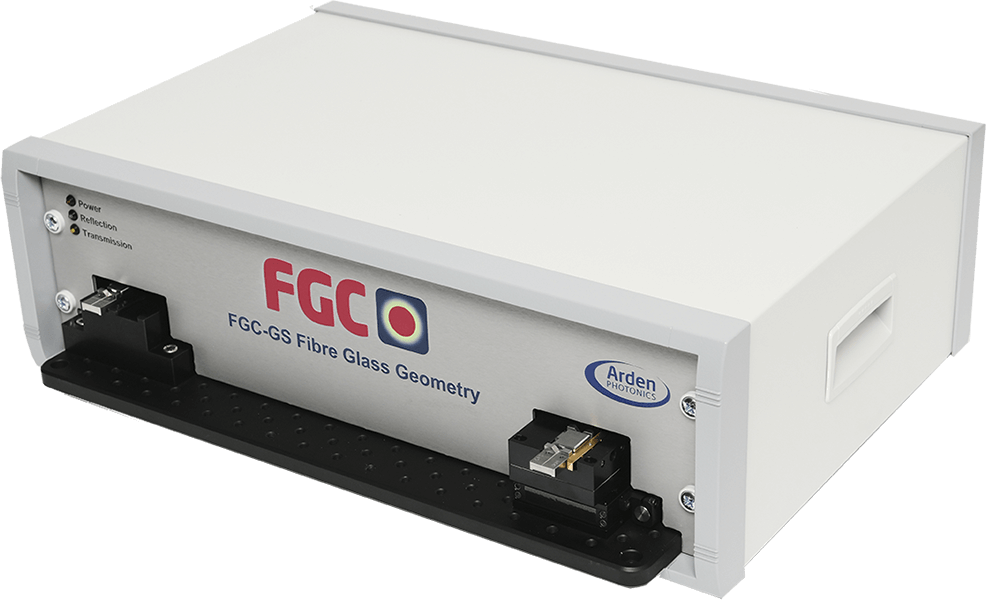

Optical | FGC-GS |
Max Field of View | 1200 µm |
Fiber Illumination – Reflection* | Darkfield illumination, 850nm LED |
Fiber Illumination – Transmission* | Multiple LED array, 850nm |
Optical | FGC-GS |
Max Field of View | 1200 µm |
Fiber Illumination – Reflection* | Darkfield illumination, 850nm LED |
Fiber Illumination – Transmission* | Multiple LED array, 850nm |
Measurement Capability | |
Measurement Time | < 10 seconds (excluding fiber prep) |
Fiber Diameter | up to 1000µm |
Special Fibers | Dual clad, Octagonal, PM, Multicore, PCF, etc. |
Physical | |
Weight | 11kg (with carry case 33kg ) |
Size | 0.5 x 0.5 x 0.2 |
Operating Temp | 10 – 30° C |
Computer Requirements | All FGC systems are supplied with a computer running up-to-date Windows operating system. |
Data Interface | 1 X USB 3.0 (USB B to USB A: 1m cable supplied) |
*May be fitted with other customized wavelengths.
**Repeatability is measured on the FGC-GS using a single 20/400 µm fiber without removing it from the unit at 22°C.
